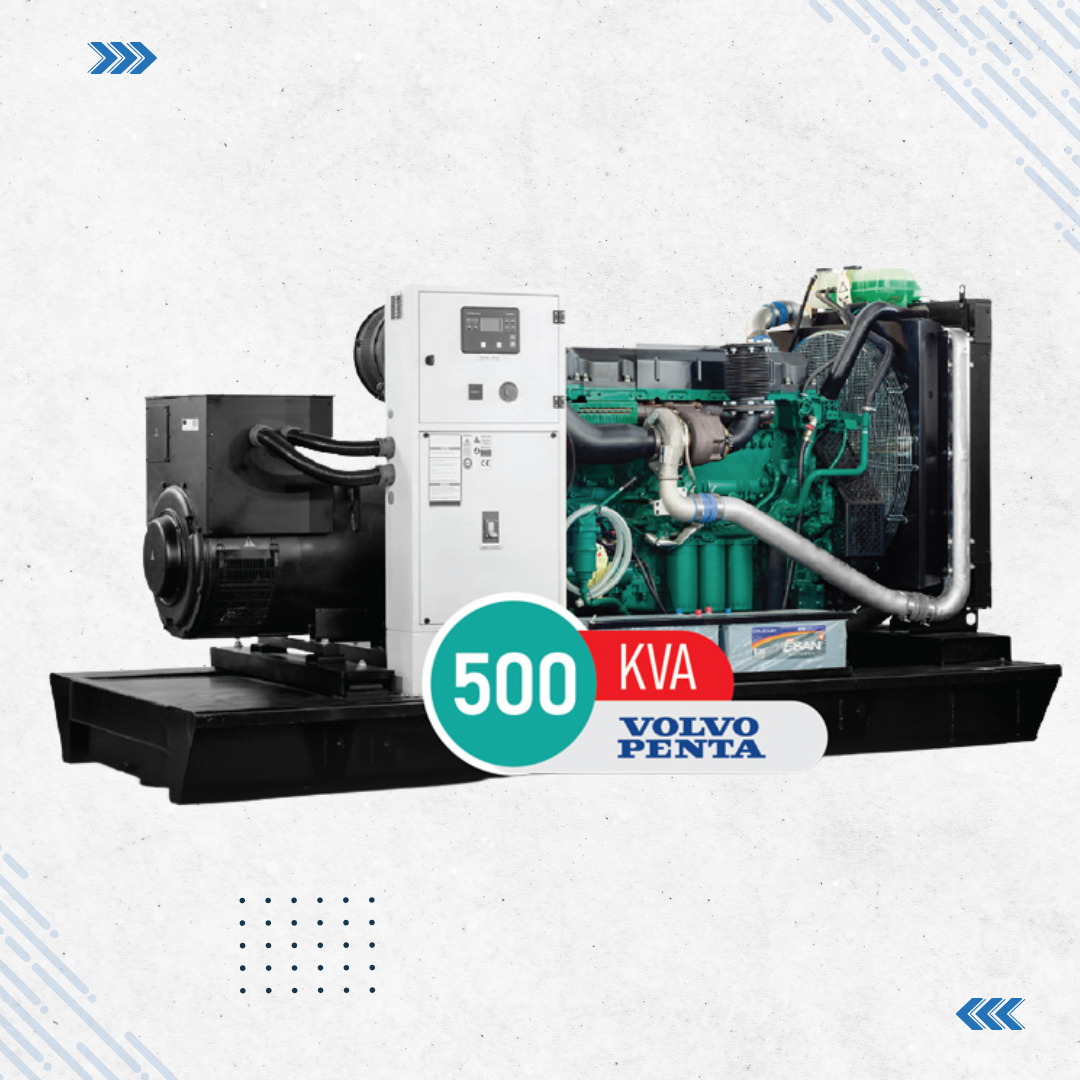

Volvo 500 kVA Diesel Generator Model TAD1345GE

Engine ، Engine Brand: VOLVO – Model: TAD1345GE ، Country of Origin: Sweden / Germany ، Prime Power: 394 kW (528 hp) ، Standby Power: 437 kW (586 hp) ، Cylinders: 6 – Arrangement: Inline ، Total Displacement: 12.78 L ، Aspiration: Turbocharged – Cooling System: Water – Governor: Electric ، Fuel Consumption: 47 L/h (50%), 69 L/h (75%), 92 L/h (100%) ، RPM: 1500 – Compression Ratio: 18.1:1 ، Injection: Direct – Electrical System: 24 V.DC ، Lubricating Oil Capacity: 36 L – Fuel Tank Capacity: 740 L – Engine Coolant Capacity: 46 L ، Maximum Exhaust Temperature: 571 °C – Maximum Exhaust Gas Flow: 3498 m³/h ، Cooling Air Flow: 425.59 m³/min – Dry Weight: 1810 kg – Torque: 2534 Nm ، Alternator ، Alternator Brand: Stamford (UK) – Model: S4L1D-G41 ، Prime Power: 451 kVA – Standby Power: 501 kVA ، Frequency: 50 Hz – Efficiency: 94% ، Insulation Class: H – Protection: IP23 ، Power Factor: 0.8 – Overload Capacity: 110% ، Output Voltage: 400/230 V – RPM: 2250 ، 4 Poles – 1 Bearing ، Generator Coupling ، Prime Power: 450 kVA / 360 kW ، Standby Power: 500 kVA / 400 kW ، Assembled In: India, Sweden, Germany, Iran ، Coupling Manufacturer: Original / Abiaran ، Weight Without Canopy: 3470 kg – Weight With Canopy: 3800 kg ، Dimensions Without Canopy: 3300×1950×1500 mm – Dimensions With Canopy: 4300×2450×1500 mm
