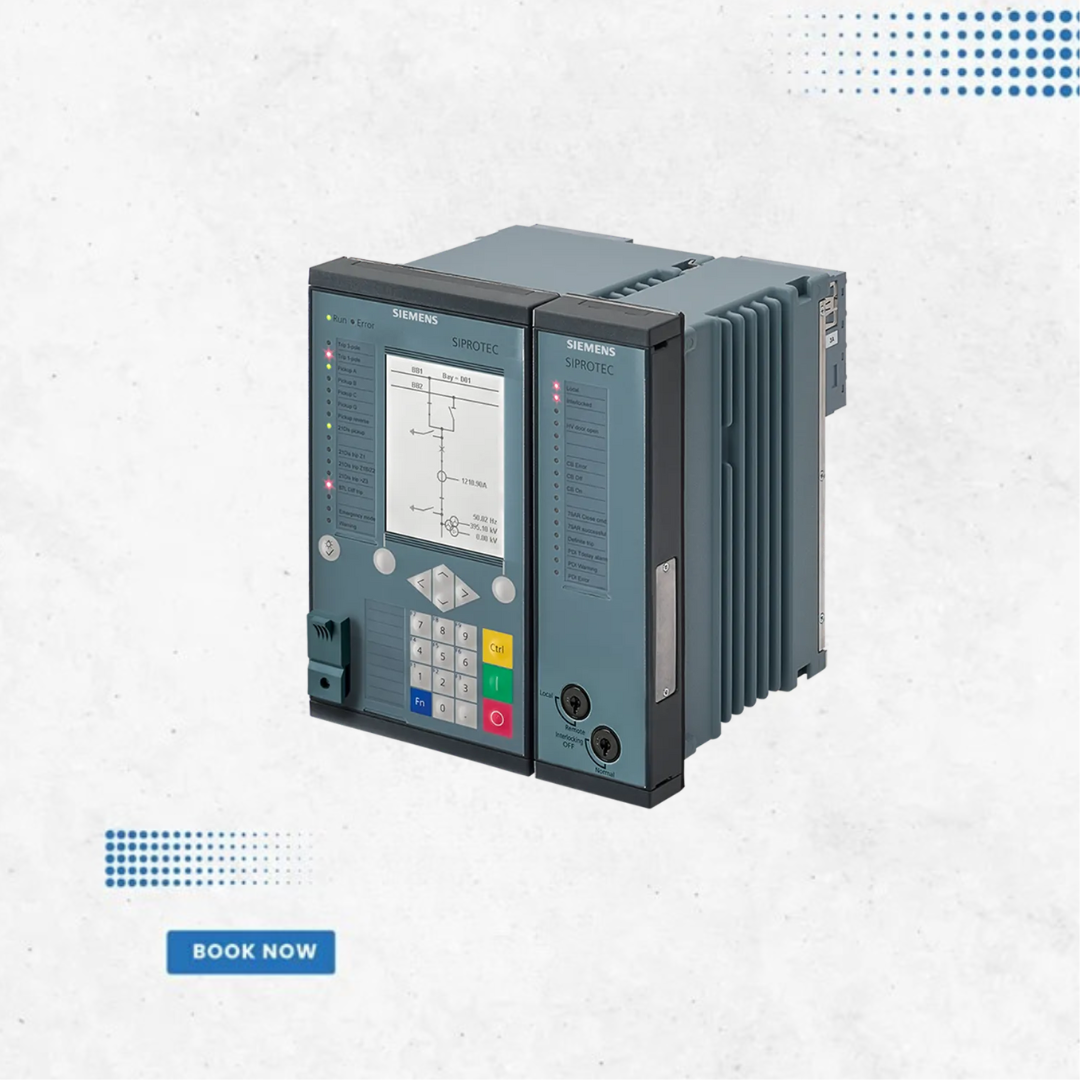

Siemens SIPROTEC 5 7SK82 Motor & Generator Protection Relay

Main Function: Motor protection for 100 kW – 2 MW machines ، Tripping: 3-pole ، Inputs & Outputs: ، 4 CTs, 4 VTs (optional) ، 11 – 23 binary inputs, 9 – 16 binary outputs ، Protection Functions: ، Motor protection: start-up supervision, thermal overload (stator/rotor), restart inhibit, load jam, unbalance ، Ground fault protection (directional / non-directional, harmonic, pulse method) ، Arc, over/undervoltage, frequency, and power protection ، Sensitive stator ground fault detection ، QU (reactive power–undervoltage) protection ، Control & Automation: ، Graphical logic editor (CFC), synchrocheck, switchgear interlocking ، Communication: ، Ethernet RJ45 (IEC 61850, GOOSE, DIGSI 5) ، 2 pluggable modules – IEC 60870-5-103/104, Modbus TCP, DNP3, PROFINET IO ، Redundancy: PRP / HSR, IEEE C37.94 fiber ، Additional Features: ، PMU (IEEE C37.118), IEEE 1588 time sync ، Fault recording (80 s @ 8 kHz / 320 s @ 2 kHz) ، Cyber security compliant with NERC CIP ، Compact housing (1/3 × 19")
