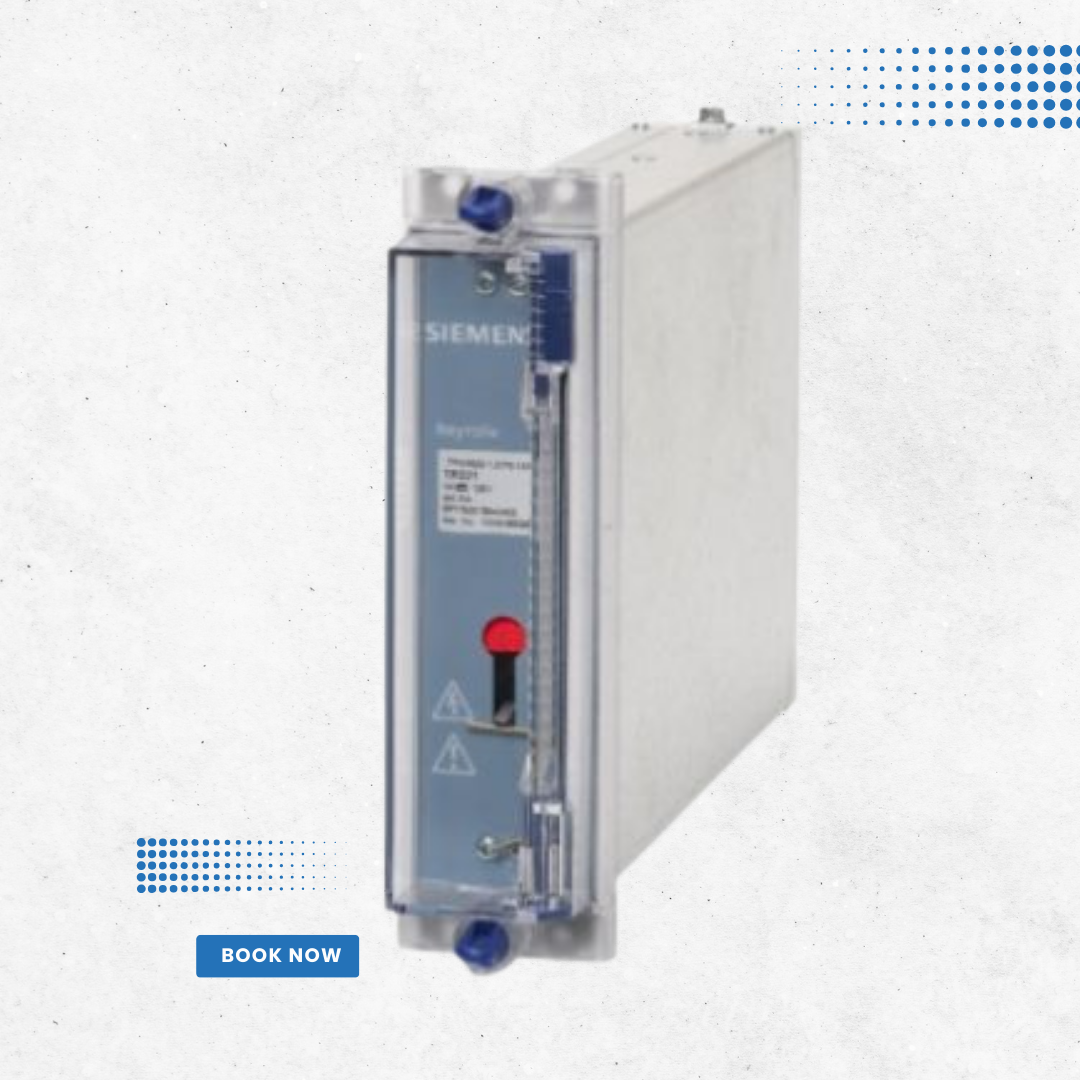

Siemens Reyrolle 7PG15 Tripping Relays
Electro-mechanical relays for auxiliary and tripping functions. High-speed multi-contact tripping relays, available in both high and low burden models, with variants up to 11 contacts and operation under 10 ms. Suitable for operate and reset modes
Technical Specifications
Type TR relays, multi-contact attracted armature, IEC 61850 compliant
Modular and withdrawable case options, robust long-life design
Up to 20 contacts available
Low burden TR1: Suitable for tripping and auxiliary duties, no capacitance immunity needed
High burden TR2: Immune to capacitance discharge, suitable for remote applications, reliable with current-operated series repeat relays
TR relays available with instantaneous or time-delayed cut-off
Low burden TR312: Electrically reset, additional terminals for direct DC supply, reduces break duty
Switching Relay TR431: Electrically reset with flag indicator, for switching protection and auto-reclose via remote pilot wires, operates from 50V DC battery with up to 200 Ω pilot loop
Modular and withdrawable case options, robust long-life design
Up to 20 contacts available
Low burden TR1: Suitable for tripping and auxiliary duties, no capacitance immunity needed
High burden TR2: Immune to capacitance discharge, suitable for remote applications, reliable with current-operated series repeat relays
TR relays available with instantaneous or time-delayed cut-off
Low burden TR312: Electrically reset, additional terminals for direct DC supply, reduces break duty
Switching Relay TR431: Electrically reset with flag indicator, for switching protection and auto-reclose via remote pilot wires, operates from 50V DC battery with up to 200 Ω pilot loop
