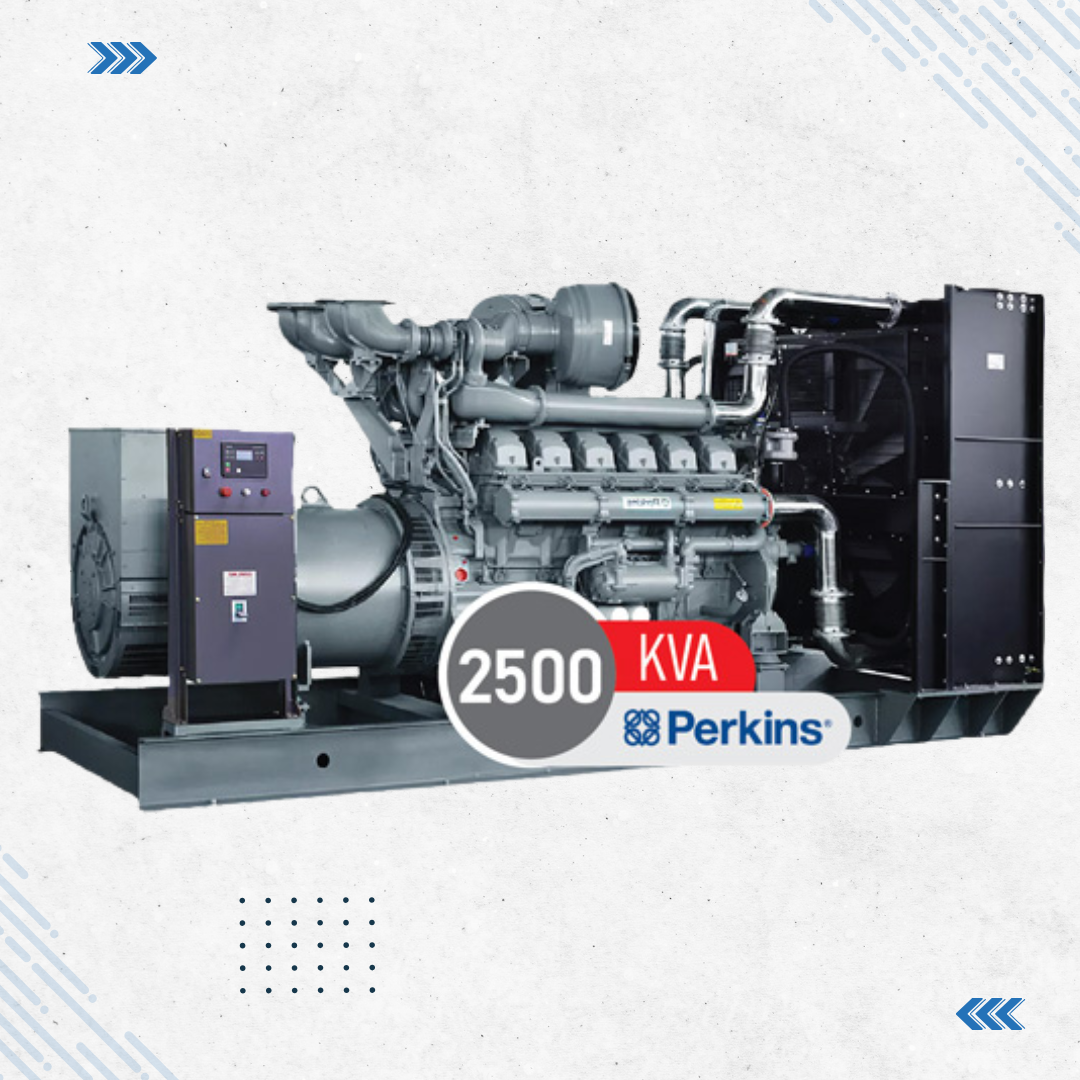

Perkins 4016-61TRG3 Diesel-Generator - 2500kVA

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Brand: Perkins ، Engine Model: 4016-61TRG3 ، Country of Origin: UK ، Prime Power: 2513 HP ، Standby Power: 2791 HP ، Engine Displacement: 61.12L ، Number of Cylinders: 16 ، Aspiration System: Turbocharged ، Cooling System: Separate Radiator ، Governor Type: Electronic ، Fuel Consumption (50%): 234 L/h ، Fuel Consumption (75%): 344 L/h ، Fuel Consumption (100%): 529 L/h ، RPM: 1500 ، Cylinder Arrangement: V ، Bore x Stroke: 160x190 mm ، Compression Ratio: 13.6:1 ، Injection Type: Direct Injection ، Electrical System: 24V DC ، Oil Capacity: 237.2L ، Fuel Tank Capacity: 4000L ، Engine Coolant Capacity: 270L ، Dry Weight: 5570kg ، Alternator Brand: Stamford ، Alternator Model: PI734H ، Prime Power (Alternator): 2500 kVA ، Standby Power (Alternator): 2250 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 95% ، Overload Capacity: 110% ، Rated Power Factor: 0.8 ، Output Voltage: 400/230 V ، Number of Poles: 4 ، Number of Bearings: 1 ، RPM (Alternator): 2250

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

Stamford and Perkins Diesel Generators are both made in the UK and are recognized as some of the highest quality products in the global and Iranian markets. Perkins strives to meet international standards in manufacturing its diesel generators. One of the reasons for the high sales of Perkins diesel generators is the wide range of models the company offers, providing specific solutions for every need. These devices are highly resistant to various environmental conditions.The Perkins 2500kVA diesel generator is ideal for factories with rotating 3-shift working hours. With its prime power, it can produce 910kVA of electricity every 8 hours. Additionally, if there is a power outage of less than an hour, this generator can supply 1000kVA of emergency power for the factory within 12 hours for one hour

Technical Specifications

Engine Brand: Perkins
Engine Model: 4016-61TRG3
Country of Origin: UK
Prime Power: 2513 HP
Standby Power: 2791 HP
Engine Displacement: 61.12L
Number of Cylinders: 16
Aspiration System: Turbocharged
Cooling System: Separate Radiator
Governor Type: Electronic
Fuel Consumption (50%): 234 L/h
Fuel Consumption (75%): 344 L/h
Fuel Consumption (100%): 529 L/h
RPM: 1500
Cylinder Arrangement: V
Bore x Stroke: 160x190 mm
Compression Ratio: 13.6:1
Injection Type: Direct Injection
Electrical System: 24V DC
Oil Capacity: 237.2L
Fuel Tank Capacity: 4000L
Engine Coolant Capacity: 270L
Dry Weight: 5570kg
Alternator Brand: Stamford
Alternator Model: PI734H
Prime Power (Alternator): 2500 kVA
Standby Power (Alternator): 2250 kVA
Frequency: 50 Hz
Insulation: H
Protection: IP23
Efficiency: 95%
Overload Capacity: 110%
Rated Power Factor: 0.8
Output Voltage: 400/230 V
Number of Poles: 4
Number of Bearings: 1
RPM (Alternator): 2250
