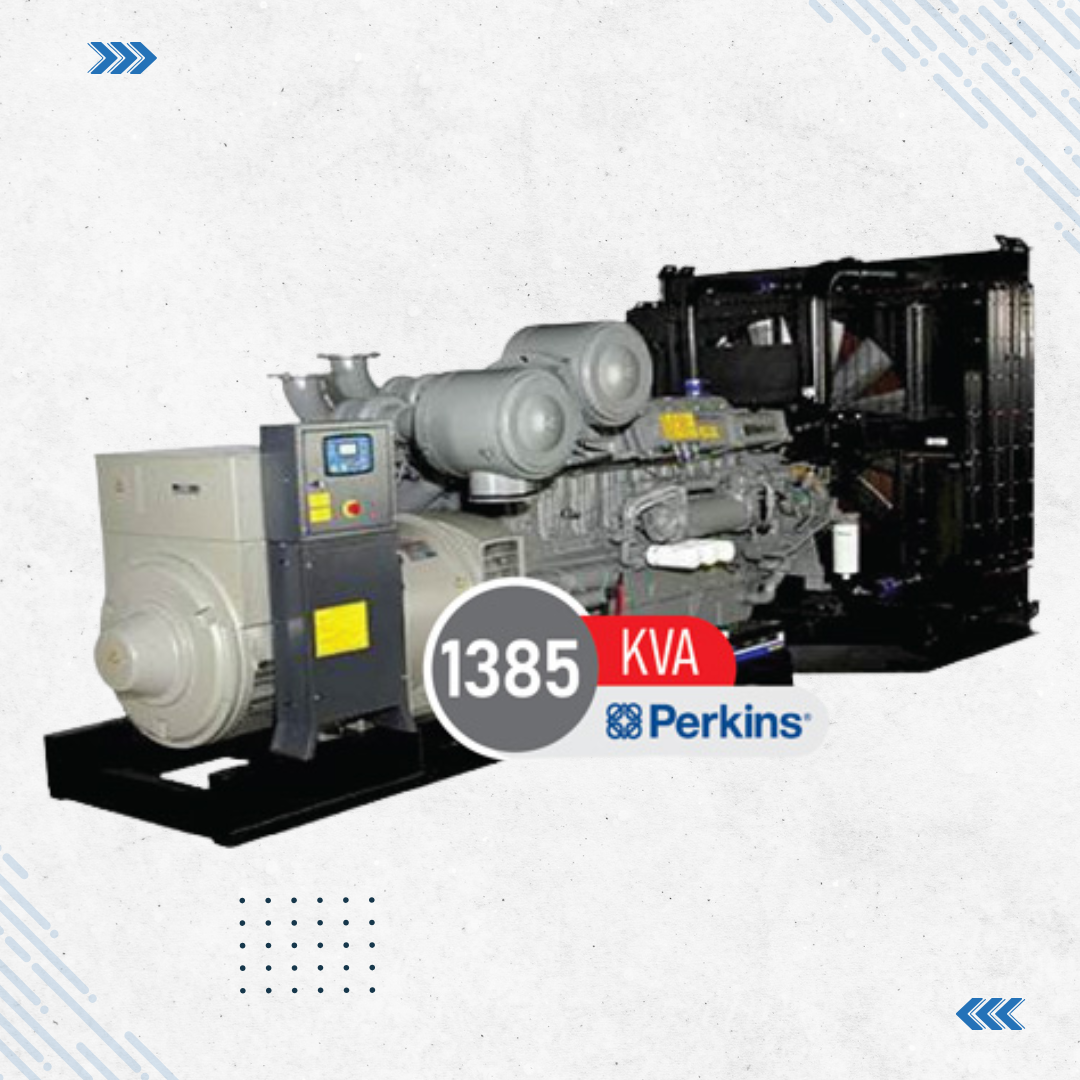

Perkins 4012-46TWG2A Diesel-Generator – 1385 kVA

Engine Brand: Perkins ، Engine Model: 4012-46TWG2A ، Country of Origin: UK ، Producing Country: UK ، Prime Power: 1414 hp ، Standby Power: 1563 hp ، Displacement: 45.84 L ، No. of Cylinders: 12 ، Aspiration: Turbocharged AAC ، Cooling System: Water Cooled ، Governor Type: Electronic ، Fuel Consumption @ 50%: 143 L/h ، Fuel Consumption @ 75%: 196 L/h ، Fuel Consumption @ 100%: 288 L/h ، Speed: 1500 rpm ، Cylinder Arrangement: V ، Bore x Stroke: 160 x 190 mm ، Compression Ratio: 13.6:1 ، Injection: Direct ، Electrical System: 24 V.DC ، Lub-Oil Capacity: 177 L ، Fuel Tank Capacity: 1440 L ، Coolant Capacity: 201 L ، Exhaust Temperature: 459 °C ، Exhaust Gas Flow: 201 m³/h ، Cooling Air Flow: 1600 m³/min ، Dry Weight: 5283 kg ، Alternator ، Brand: Stamford ، Model: PI734B ، Producing Country: UK ، Prime Power: 1400 kVA ، Standby Power: 1500 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 95.2 % ، Overloading Capacity: 110 % ، Power Factor: 0.8 ، No. of Poles: 4 ، No. of Bearings: 1 ، Output Voltage: 400/230 V ، RPM: 2250
