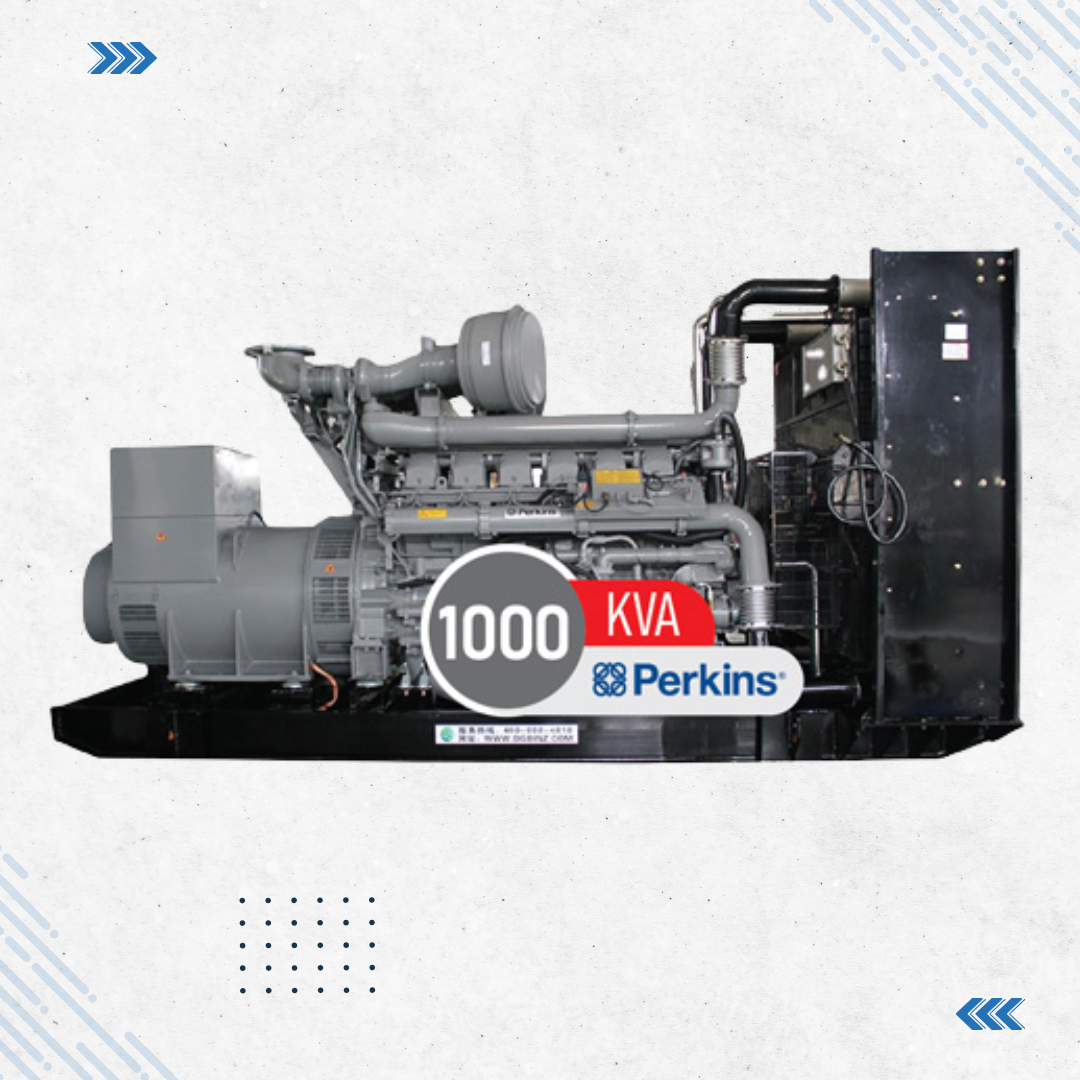

Perkins 4008TAG1A Diesel Generator – 1000 kVA

Brand: Perkins ، Model: 4008TAG1A ، Origin: UK ، Prime Power: 1029 hp ، Standby Power: 1132 hp ، Displacement: 30.56 L ، Cylinders: 8 (in-line) ، Aspiration: Turbocharged AAC ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption (50%): 98 L/h ، Fuel Consumption (75%): 143 L/h ، Fuel Consumption (100%): 218 L/h ، Speed: 1500 rpm ، Bore x Stroke: 160 x 190 mm ، Compression Ratio: 13.6:1 ، Injection: Direct ، Electrical System: 24 V DC ، Lub-Oil Capacity: 153 L ، Fuel Tank Capacity: 1440 L ، Coolant Capacity: 162 L ، Max Exhaust Temp: 445 °C ، Max Exhaust Gas Flow: 190 m³/h ، Cooling Air Flow: 1305 m³/min ، Dry Weight: 4270 kg ، Technical Specifications – Alternator: ، Brand: Stamford ، Model: HCI634H ، Country: UK ، Prime Power: 910 kVA ، Standby Power: 1000 kVA ، Frequency: 50 Hz ، Insulation: Class H ، Protection: IP23 ، Efficiency: 95.4% ، Overload Capacity: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearing: 1 ، Output Voltage: 400/230 V ، Speed: 2250 rpm
