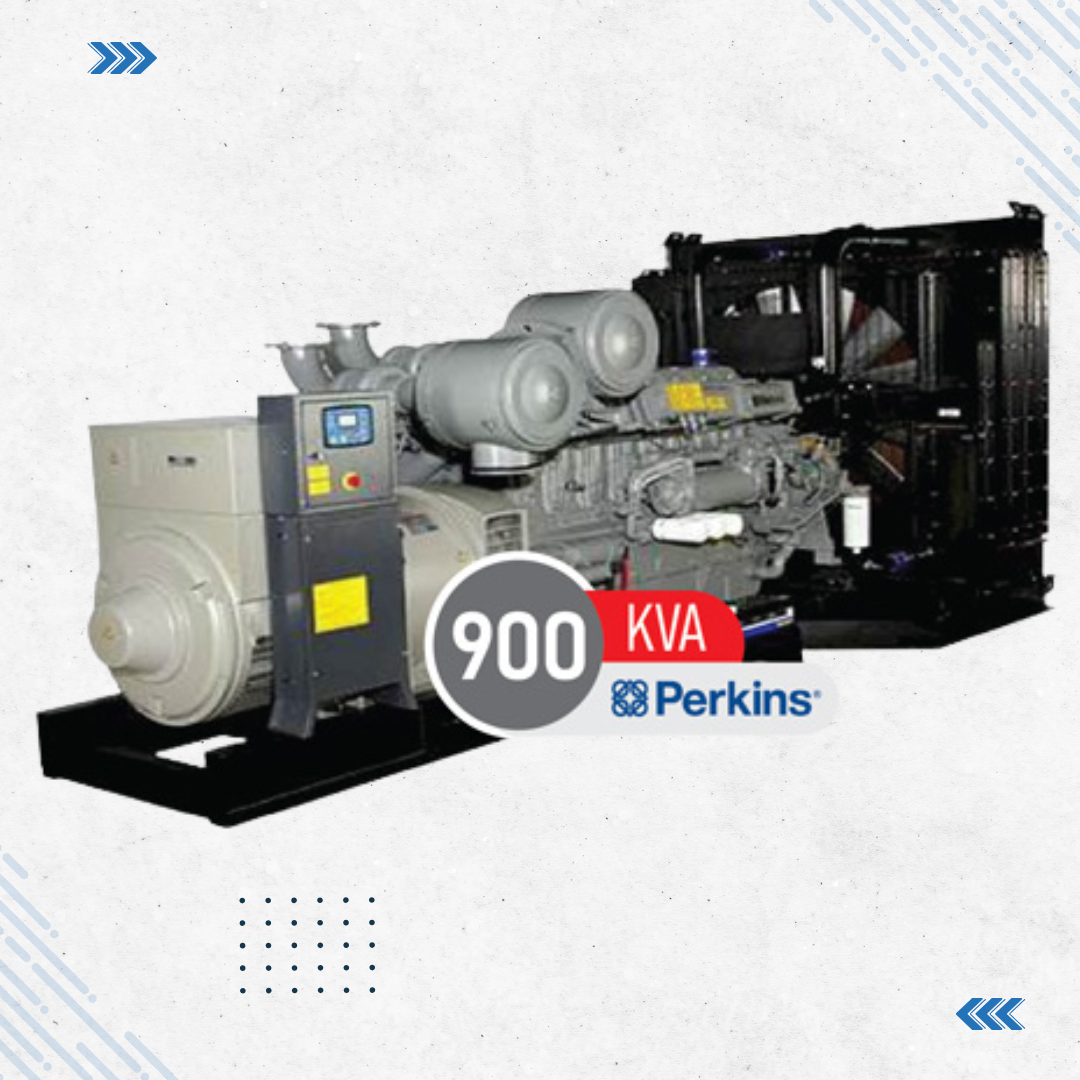

Perkins 4006-23TAG3A Diesel Generator – 900 kVA

Brand: Perkins ، Model: 4008TAG1A ، Country of Origin: UK ، Prime Power: 679 kW ، Standby Power: 760 kW ، No. of Cylinders: 6 (in-line) ، Aspiration: Turbocharged & Intercooled ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption 50%: 90 L/h ، Fuel Consumption 75%: 130 L/h ، Fuel Consumption 100%: 172 L/h ، Speed: 1500 rpm ، Bore x Stroke: 160 x 190 mm ، Compression Ratio: 13.6:1 ، Injection: Direct ، Electrical System: 24 V DC ، Lub-Oil Capacity: 113.4 L ، Fuel Tank Capacity: 877 L ، Coolant Capacity: 105 L ، Max Exhaust Temp: 430 °C ، Max Exhaust Gas Flow: 180 m³/h ، Cooling Air Flow: 1200 m³/min ، Dry Weight: 2524 kg ، Technical Specifications – Alternator: ، Brand: Stamford ، Model: HCI634G ، Country: UK ، Prime Power: 750 kVA ، Standby Power: 850 kVA ، Frequency: 50 Hz ، Insulation Class: H ، Protection: IP23 ، Efficiency: 94.2% ، Overload Capacity: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 400/230 V ، Speed: 1500 rpm
