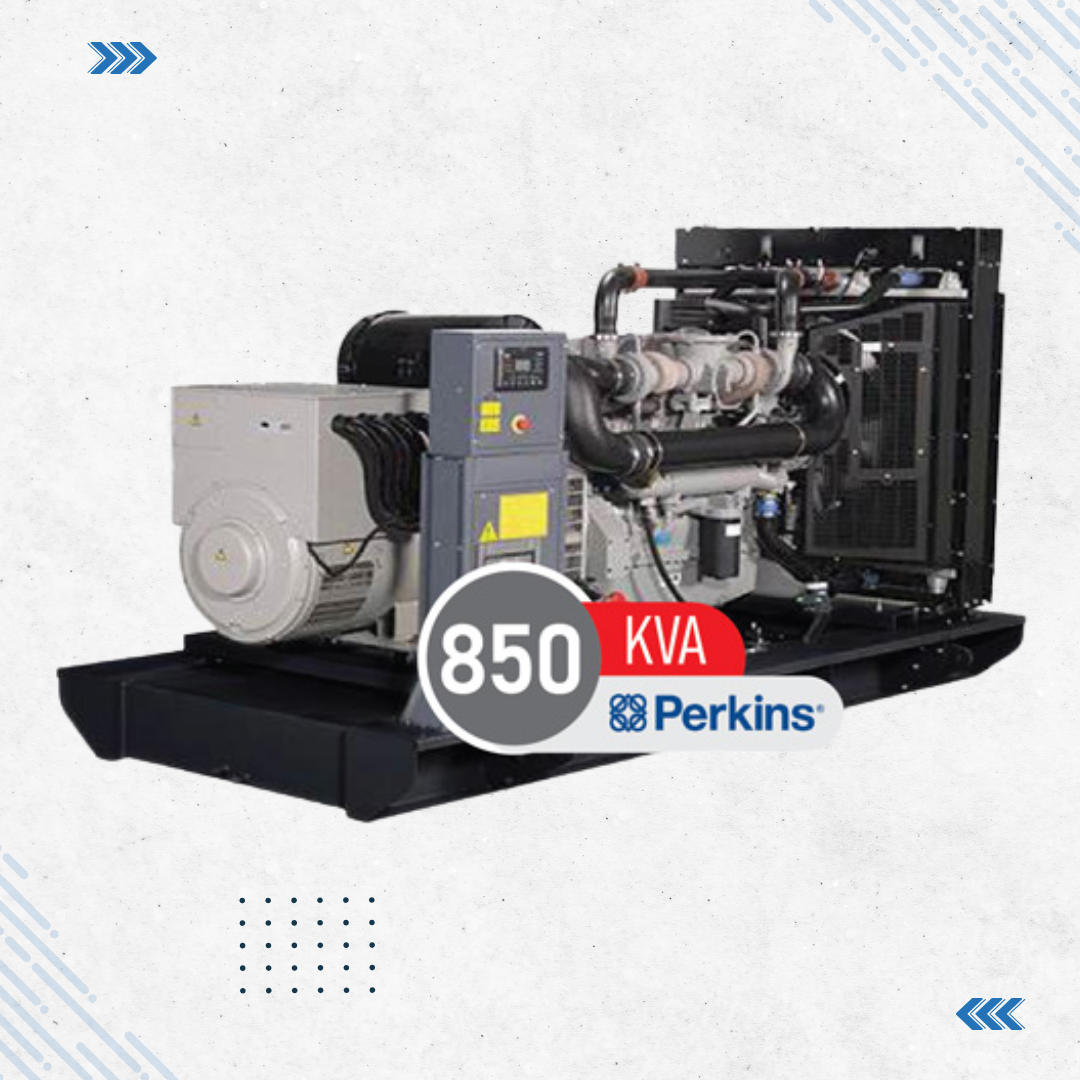

Perkins 2806A-E18TTAG5 Diesel Generator – 850 kVA

Engine Brand: Perkins ، Engine Model: 2806A-E18TTAG5 ، Country of Origin: UK ، Prime Power: 847 hp ، Standby Power: 957 hp ، Total Displacement: 22.9 L ، No. of Cylinders: 6 (in-line) ، Aspiration: Turbocharged AAC ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption (50%): 198 L/h ، Fuel Consumption (75%): 194 L/h ، Fuel Consumption (100%): 202 L/h ، Speed: 1500 rpm ، Bore x Stroke: 145 x 183 mm ، Compression Ratio: 14.5:1 ، Injection: Direct ، Electrical System: 24 V DC ، Lub-Oil Capacity: 68 L ، Fuel Tank Capacity: 1100 L ، Engine Coolant Capacity: 110 L ، Max Exhaust Temp: 430 °C ، Max Exhaust Gas Flow: 180 m³/h ، Cooling Air Flow: 1200 m³/min ، Dry Weight: 2524 kg ، Technical Specifications – Alternator: ، Alternator Brand: Stamford ، Model: HCI634G ، Country of Origin: UK ، Prime Power: 770 kVA ، Standby Power: 850 kVA ، Frequency: 50 Hz ، Insulation Class: H ، Protection: IP23 ، Overload Capacity: 110% ، Power Factor: 0.8 ، No. of Poles: 4 ، No. of Bearings: Single ، Output Voltage: 400/230 V ، Speed: 2250 rpm
