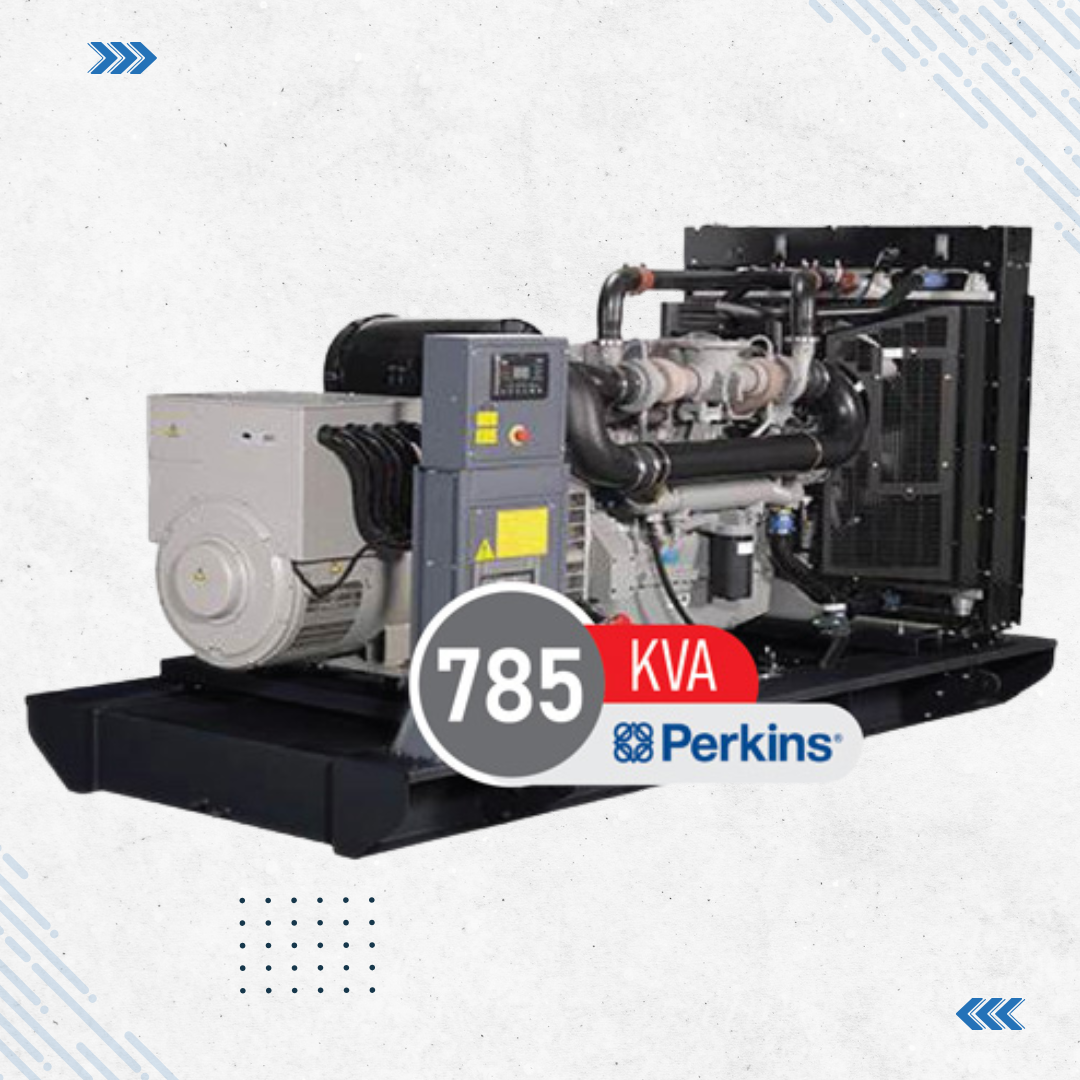

Perkins 2806A-E18TTAG4 Diesel Generator – 785 kVA
Many leading manufacturers of diesel generators create competitive advantages in their products to increase their global market share. Perkins, by producing compact, powerful, and low-noise machines, has strengthened its position in the market. With the Perkins 2806A-E18TTAG4, you can enjoy years of reliable service with minimal wear and tear. Thanks to Perkins’ long-term performance, you won’t need to replace the unit for many years
Technical Specifications
Engine Brand: Perkins
Engine Model: 2806A-E18TTAG4
Country of Origin: UK
Prime Power: 685 kW
Standby Power: 723 kW
Displacement: 18.1 L
No. of Cylinders: 6 (in-line)
Aspiration: Turbocharged & Intercooled
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption (50%): 75 L/h
Fuel Consumption (75%): 109 L/h
Fuel Consumption (100%): 147 L/h
Speed: 1500 rpm
Compression Ratio: 14:1
Injection: Direct
Fuel Tank Capacity: 1600 L
Coolant Capacity: 110 L
Dry Weight: 6715 kg
Technical Specifications – Alternator:
Brand: Stamford
Model: S6L1D-C4
Country of Origin: UK
Prime Power: 860 kVA
Frequency: 50 Hz
Insulation: Yes
Protection: IP23
Power Factor: 0.8
Poles: 4
Bearing: Single-bearing
Output Voltage: 400 V
Speed: 1500 rpm
Engine Model: 2806A-E18TTAG4
Country of Origin: UK
Prime Power: 685 kW
Standby Power: 723 kW
Displacement: 18.1 L
No. of Cylinders: 6 (in-line)
Aspiration: Turbocharged & Intercooled
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption (50%): 75 L/h
Fuel Consumption (75%): 109 L/h
Fuel Consumption (100%): 147 L/h
Speed: 1500 rpm
Compression Ratio: 14:1
Injection: Direct
Fuel Tank Capacity: 1600 L
Coolant Capacity: 110 L
Dry Weight: 6715 kg
Technical Specifications – Alternator:
Brand: Stamford
Model: S6L1D-C4
Country of Origin: UK
Prime Power: 860 kVA
Frequency: 50 Hz
Insulation: Yes
Protection: IP23
Power Factor: 0.8
Poles: 4
Bearing: Single-bearing
Output Voltage: 400 V
Speed: 1500 rpm
