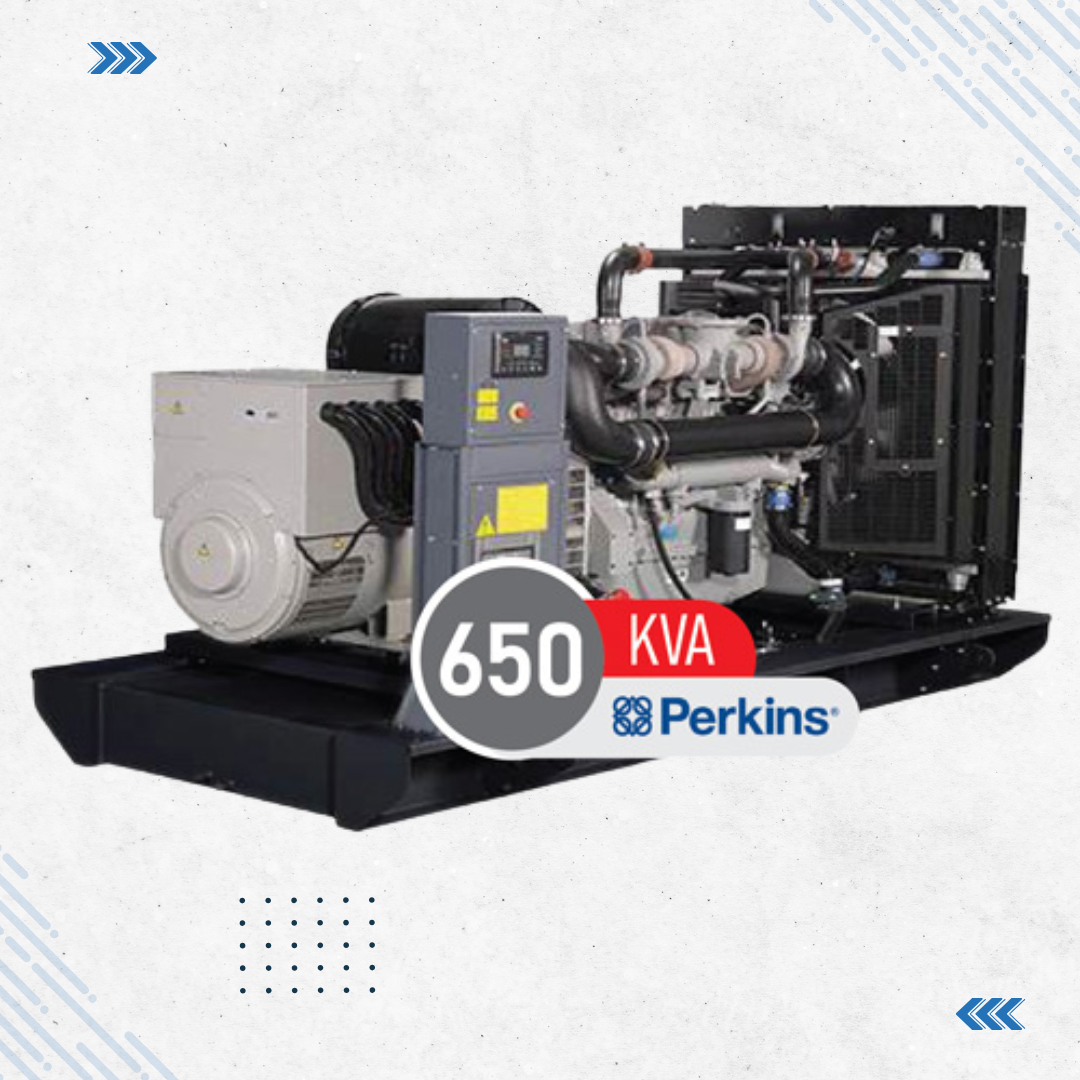

Perkins 2806A-E18TAG1 Diesel Generator – 650 kVA

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Brand: Perkins ، Engine Model: 2806A-E18TAG1 ، Country of Origin: UK ، Prime Power: 700 hp ، Standby Power: 770 hp ، Total Displacement: 18.1 L ، No. of Cylinders: 6 (In-line) ، Aspiration System: Turbocharged AAC ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption (50%): 61 L/h ، Fuel Consumption (75%): 90 L/h ، Fuel Consumption (100%): 134 L/h ، Speed: 1500 rpm ، Bore × Stroke: 145 × 183 mm ، Compression Ratio: 14.5:1 ، Injection: Direct ، Electrical System: 24 V DC ، Lub-Oil Capacity: 62 L ، Fuel Tank Capacity: 1016 L ، Coolant Capacity: 61 L ، Max. Exhaust Temp.: 568 °C ، Exhaust Gas Flow: 96 m³/h ، Cooling Air Flow: 702 m³/min ، Dry Weight: 2050 kg ، Technical Specifications – Alternator: ، Brand: Stamford ، Model: HCI544E ، Country of Origin: UK ، Prime Power: 570 kVA ، Frequency: 50 Hz ، Insulation: Class H ، Efficiency: 94.7 % ، Overload Capacity: 110 % ، Power Factor: 0.8 ، Poles: 4 ، Bearing: 1 ، Output Voltage: 400/230 V ، Speed: 2250 rpm

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

Perkins is one of the world’s leading diesel generator manufacturers, offering high-quality, durable, and efficient gensets. The Perkins 2806A-E18TAG1 is designed to compete with brands like Cummins, while providing users with easy access to spare parts and maintenance. One of the key advantages of this model is its stability and increasing efficiency over time, making it ideal for backup power supply or heavy-duty applications such as cryptocurrency mining.Equipped with a Stamford alternator model HCI544E, this generator delivers 94.7% efficiency and is built with a 4-pole design and a 1500 rpm engine speed, ensuring reliable power output

Technical Specifications

Engine Brand: Perkins
Engine Model: 2806A-E18TAG1
Country of Origin: UK
Prime Power: 700 hp
Standby Power: 770 hp
Total Displacement: 18.1 L
No. of Cylinders: 6 (In-line)
Aspiration System: Turbocharged AAC
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption (50%): 61 L/h
Fuel Consumption (75%): 90 L/h
Fuel Consumption (100%): 134 L/h
Speed: 1500 rpm
Bore × Stroke: 145 × 183 mm
Compression Ratio: 14.5:1
Injection: Direct
Electrical System: 24 V DC
Lub-Oil Capacity: 62 L
Fuel Tank Capacity: 1016 L
Coolant Capacity: 61 L
Max. Exhaust Temp.: 568 °C
Exhaust Gas Flow: 96 m³/h
Cooling Air Flow: 702 m³/min
Dry Weight: 2050 kg
Technical Specifications – Alternator:
Brand: Stamford
Model: HCI544E
Country of Origin: UK
Prime Power: 570 kVA
Frequency: 50 Hz
Insulation: Class H
Efficiency: 94.7 %
Overload Capacity: 110 %
Power Factor: 0.8
Poles: 4
Bearing: 1
Output Voltage: 400/230 V
Speed: 2250 rpm
