Perkins 2506C-E15TAG1 Diesel Generator – 500 kVA

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Brand: Perkins ، Engine Model: 2506C-E15TAG1 ، Prime Power: 531 hp ، Standby Power: 583 hp ، Cylinders: 6 (Inline) ، Aspiration: Turbocharged AAC ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption: 51 L/h (50%), 73 L/h (75%), 109 L/h (100%) ، Speed: 1500 rpm ، Bore x Stroke: 137 x 171 mm ، Compression Ratio: 16:1 ، Injection: Direct ، Electrical System: 24 V.DC ، Lub-Oil Capacity: 62 L ، Fuel Tank Capacity: 970 L ، Coolant Capacity: 58 L ، Max Exhaust Temperature: 570 °C ، Max Exhaust Gas Flow: 70 m³/h ، Cooling Air Flow: 605 m³/min ، Dry Weight: 1633 kg ، Alternator: ، Brand: Stamford ، Model: HCI544C ، Prime Power: 451 kVA ، Frequency: 50 Hz ، Insulation: Class H ، Efficiency: 94 % ، Overload Capacity: 110 % ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 400/230 V ، Speed: 2250 rpm

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

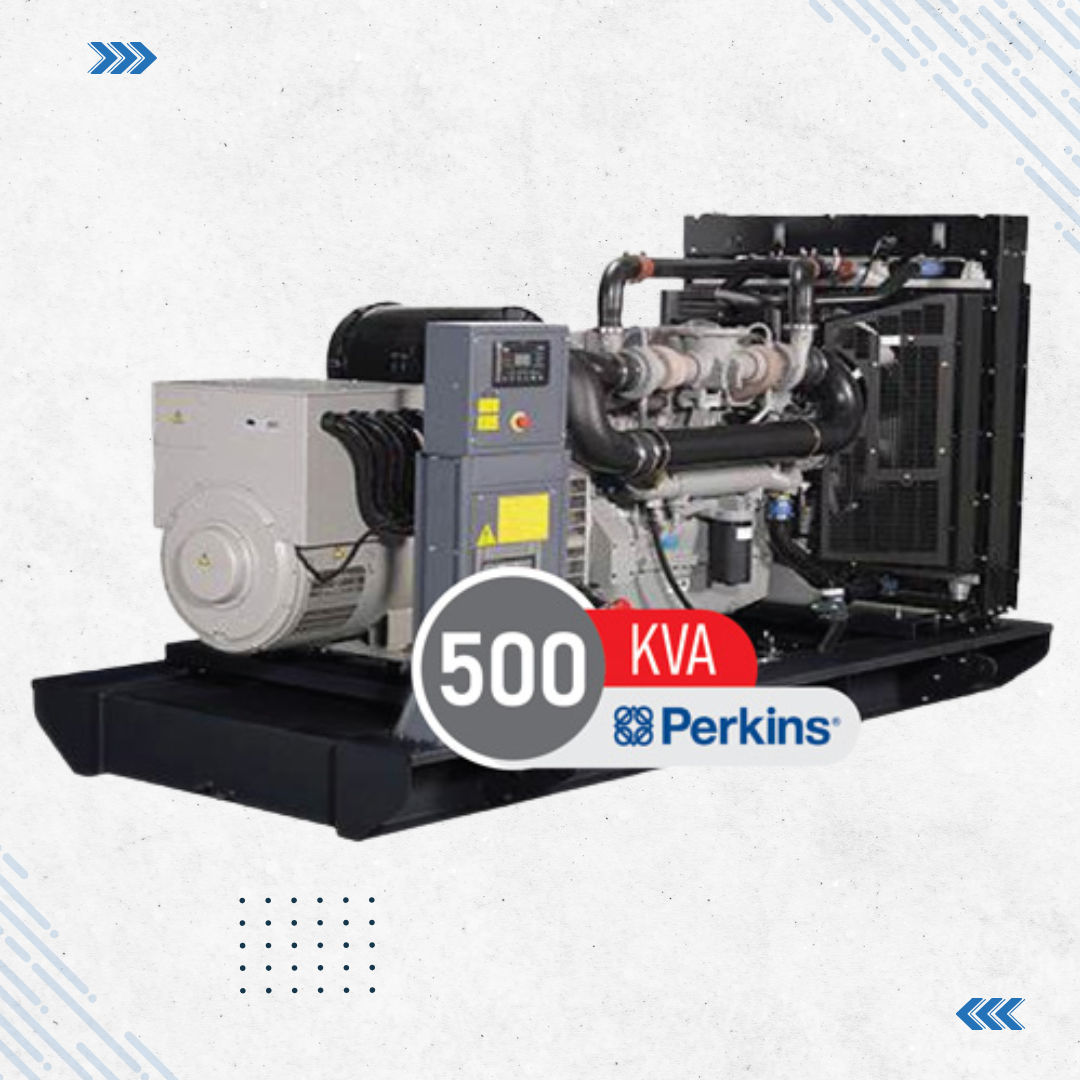

The Perkins 2506C-E15TAG1 is a reliable 500 kVA diesel generator designed for heavy-duty and long-term applications. With a 6-cylinder, 15-liter turbocharged AAC engine, it provides 531 hp prime power and up to 583 hp standby power. Known for its fuel efficiency, it consumes 51 L/h at 50% load and 109 L/h at full load. Spare parts are widely available in the market, making maintenance and repair hassle-free. Equipped with a Stamford alternator and an electronic governor, this genset delivers stable power, high efficiency, and dependable operation

Technical Specifications

Engine Brand: Perkins
Engine Model: 2506C-E15TAG1
Prime Power: 531 hp
Standby Power: 583 hp
Cylinders: 6 (Inline)
Aspiration: Turbocharged AAC
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption: 51 L/h (50%), 73 L/h (75%), 109 L/h (100%)
Speed: 1500 rpm
Bore x Stroke: 137 x 171 mm
Compression Ratio: 16:1
Injection: Direct
Electrical System: 24 V.DC
Lub-Oil Capacity: 62 L
Fuel Tank Capacity: 970 L
Coolant Capacity: 58 L
Max Exhaust Temperature: 570 °C
Max Exhaust Gas Flow: 70 m³/h
Cooling Air Flow: 605 m³/min
Dry Weight: 1633 kg
Alternator:
Brand: Stamford
Model: HCI544C
Prime Power: 451 kVA
Frequency: 50 Hz
Insulation: Class H
Efficiency: 94 %
Overload Capacity: 110 %
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 400/230 V
Speed: 2250 rpm
