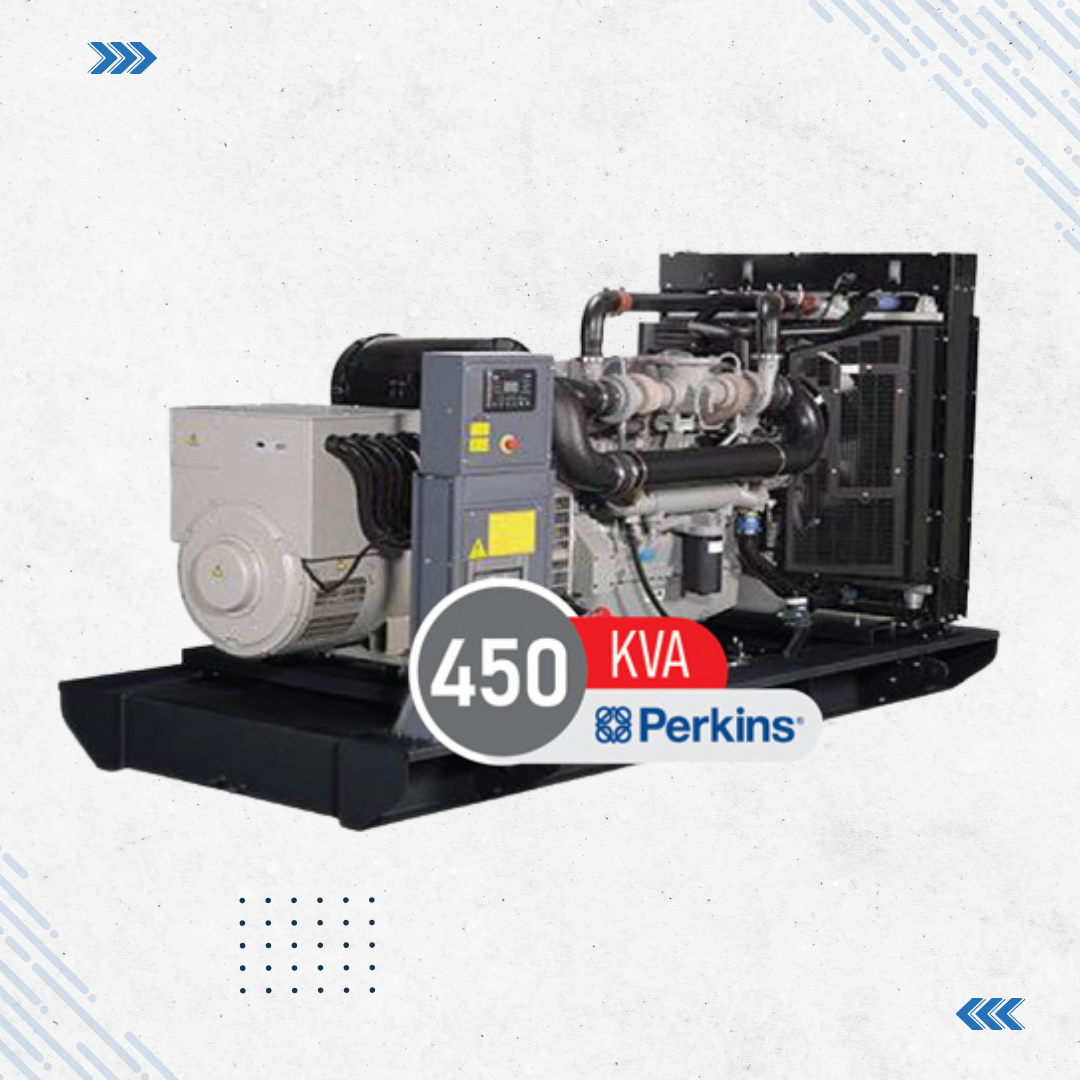

Perkins 2206A-E13TAG3 Diesel Generator – 450 kVA

Engine Brand: Perkins ، Engine Model: 2206A-E13TAG3 ، Prime Power: 468 hp ، Standby Power: 526 hp ، Displacement: 12.5 L ، Cylinders: 6 (Inline) ، Aspiration: Turbocharged AAC ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption: 42 L/h (50%), 62 L/h (75%), 90 L/h (100%) ، Speed: 1500 rpm ، Bore x Stroke: 130 x 157 mm ، Compression Ratio: 16.3:1 ، Injection: Direct ، Electrical System: 24 V.DC ، Lub-Oil Capacity: 40 L ، Fuel Tank Capacity: 920 L ، Coolant Capacity: 51.4 L ، Max Exhaust Temperature: 582 °C ، Max Exhaust Gas Flow: 65 m³/h ، Cooling Air Flow: 450 m³/min ، Dry Weight: 1478 kg ، Alternator: ، Brand: Stamford ، Model: HCI444F ، Prime Power: 400 kVA ، Standby Power: 450 kVA ، Frequency: 50 Hz ، Insulation: Class H ، Protection: IP23 ، Efficiency: 93.2 % ، Overload Capacity: 110 % ، Power Factor: 0.8 ، Poles: 4 ، Speed: 2250 rpm
