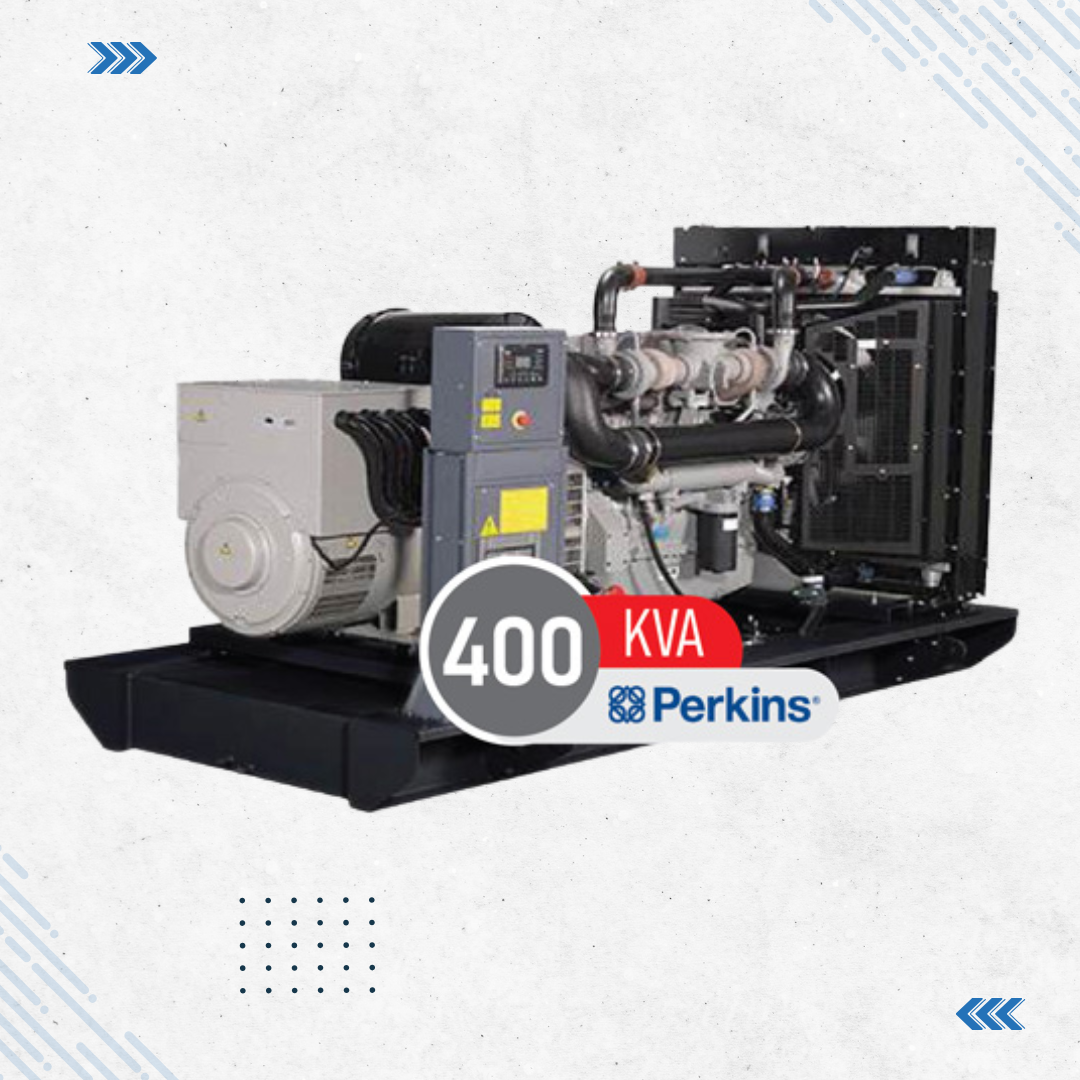

Perkins 2206A-E13TAG2 Diesel Generator – 400 kVA
The Perkins 2206A-E13TAG2 is a highly powerful 400 kVA diesel generator, designed for heavy-duty industrial, agricultural, and construction applications. It delivers 409 hp of prime power and up to 469 hp standby power with a robust 6-cylinder turbocharged engine, ensuring reliable three-phase power generation. With Stamford alternator and advanced electronic governor, it provides efficiency, durability, and reduced noise
Technical Specifications
Engine Brand: Perkins
Engine Model: 2206A-E13TAG2
Power: 409 hp (Prime), 469 hp (Standby)
Displacement: 12.5 L
Cylinders: 6 (Inline)
Aspiration: Turbocharged AAC
Cooling: Water-cooled
Governor: Electronic
Fuel Consumption: 37 L/h (50%), 54 L/h (75%), 80 L/h (100%)
Speed: 1500 rpm
Bore x Stroke: 130 x 157 mm
Compression Ratio: 16.3:1
Injection: Direct
Oil Capacity: 40 L
Fuel Tank Capacity: 970 L
Coolant Capacity: 51.4 L
Alternator Brand: Stamford
Alternator Model: HCI444E
Prime Power: 352 kVA
Standby Power: 387 kVA
Frequency: 50 Hz
Insulation: Class H
Protection: IP23
Efficiency: 93.2%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 400/230 V
Dry Weight: 1478 kg
Engine Model: 2206A-E13TAG2
Power: 409 hp (Prime), 469 hp (Standby)
Displacement: 12.5 L
Cylinders: 6 (Inline)
Aspiration: Turbocharged AAC
Cooling: Water-cooled
Governor: Electronic
Fuel Consumption: 37 L/h (50%), 54 L/h (75%), 80 L/h (100%)
Speed: 1500 rpm
Bore x Stroke: 130 x 157 mm
Compression Ratio: 16.3:1
Injection: Direct
Oil Capacity: 40 L
Fuel Tank Capacity: 970 L
Coolant Capacity: 51.4 L
Alternator Brand: Stamford
Alternator Model: HCI444E
Prime Power: 352 kVA
Standby Power: 387 kVA
Frequency: 50 Hz
Insulation: Class H
Protection: IP23
Efficiency: 93.2%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 400/230 V
Dry Weight: 1478 kg
