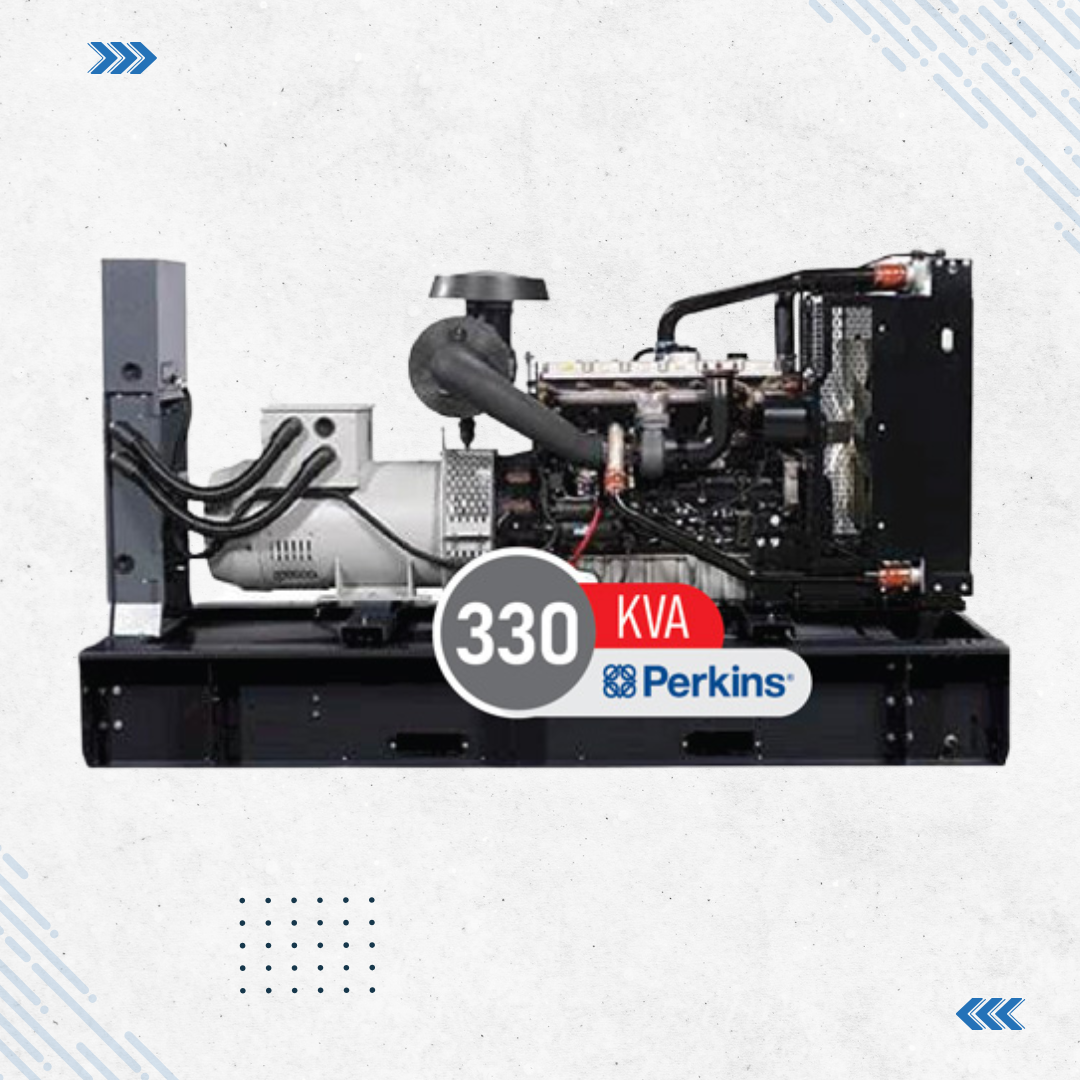

Perkins 1506A-E88TAG5 Diesel Generator - 330 kVA

Engine ، Brand: Perkins ، Model: 1506A-E88TAG5 ، Country of Origin: UK ، Prime Power: 357 hp (267 kW) ، Standby Power: 392 hp (293 kW) ، Cylinders: 6 ، Aspiration: Turbo AAC ، Cooling System: Water ، Governor: Electronic ، Fuel Consumption: 33 L/h (50%), 48 L/h (75%), 73 L/h (100%) ، RPM: 1500 ، Cylinder Arrangement: Inline ، Bore × Stroke: 112 × 149 mm ، Compression Ratio: 16.1:1 ، Injection: Direct ، Electrical System: 24 V.DC ، Lub-Oil Capacity: 41 L ، Fuel Tank Capacity: 585 L ، Engine Coolant Capacity: 609 L ، Max Exhaust Temperature: 565 °C ، Max Exhaust Gas Flow: 45 m³/h ، Cooling Air Flow: 275 m³/min ، Dry Weight: 1183 kg ، Alternator ، Brand: Stamford ، Model: HCI444D ، Country of Origin: UK ، Prime Power: 315 kVA ، Standby Power: 346 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 92.7% ، Overloading: 110% ، Rated Power Factor: 0.8 ، No. of Poles: 4 ، Output Voltage: 400/230 V ، RPM: 2250
