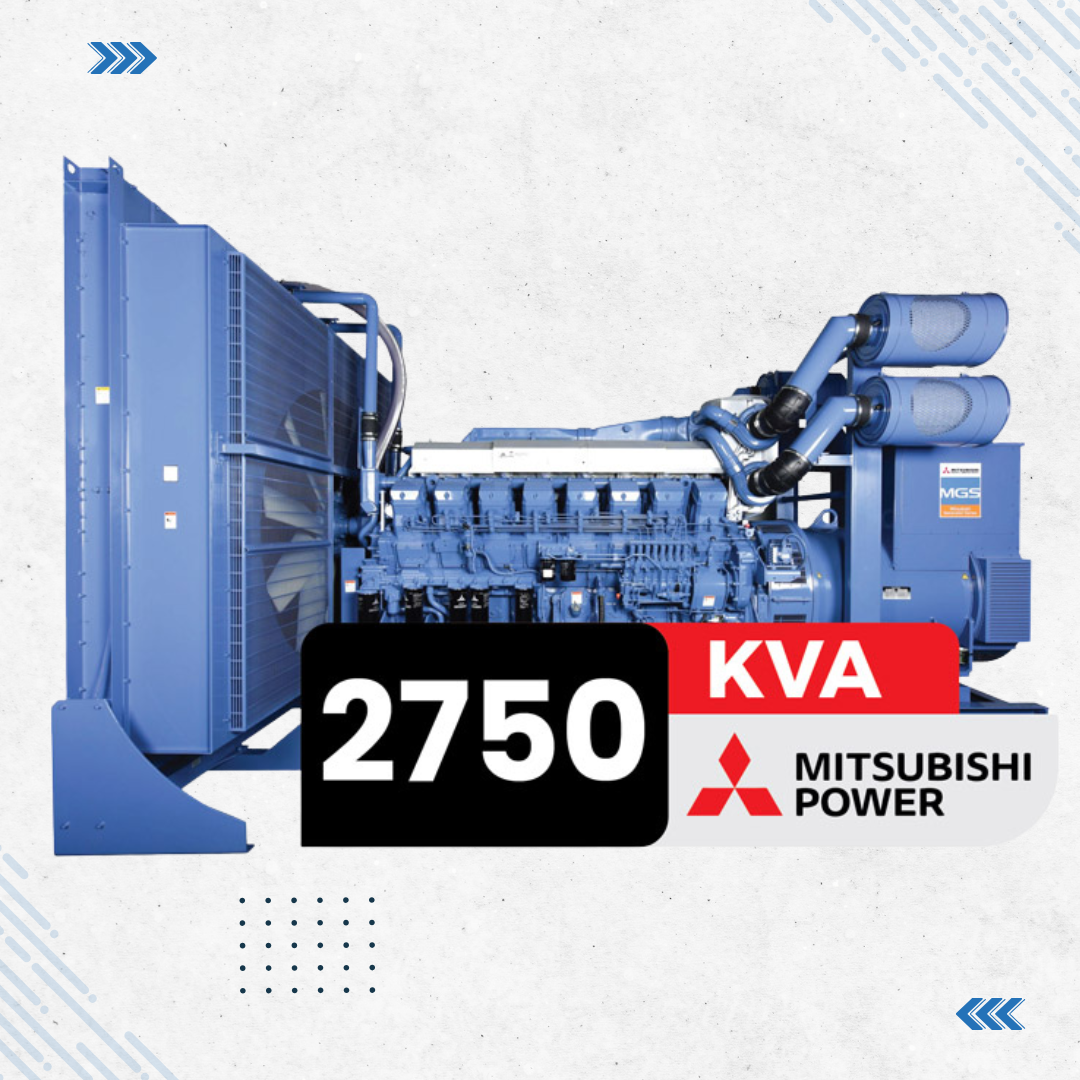

Mitsubishi S16R2 PTAW2-E Diesel Generator - 2750kVA
The Mitsubishi S16R2 PTAW2-E diesel engine, designed for heavy-duty industrial applications and large generators, has a V-configuration with 16 cylinders and a displacement of 79.9 liters. It produces 2209 kW of prime power at 1500 rpm, with a maximum standby power of 2430 kW.The direct fuel injection system, along with a turbocharger and air cooler, ensures optimal performance and efficient fuel consumption. The electronic governor system provides precise speed control for the engine.With a dry weight of 7750 kg and compact dimensions, this engine is suitable for installation in confined spaces. The water-cooling system, combined with a 24V DC electrical system, facilitates easy maintenance and startup. These features, along with the meticulous engineering design, make the Mitsubishi S16R2 PTAW2-E diesel generator an ideal choice for large-scale industrial and infrastructure projects requiring high power
Technical Specifications
Engine Specifications:
Engine Brand: Mitsubishi
Engine Model: S16R2 PTAW2-E
Country of Origin: Japan
Prime Power: 2209 kW
Standby Power: 2430 kW
Engine Displacement: 79.9 L
No. of Cylinders: 16
Aspiration System: Turbocharged & Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 265 L/h
Fuel Consumption at 75% Load: 388 L/h
Fuel Consumption at 100% Load: 526 L/h
Revolution Per Minute: 1500 rpm
Cylinder Arrangement: V-Type
Bore x Stroke: 170 x 220 mm
Compression Ratio: 14:1
Injection Type: Direct Injection
Lubricating Oil Capacity: 290 L
Coolant Capacity: 715 L
Alternator Specifications:
Alternator Brand: Stamford
Alternator Model: S7L1D-J
Country of Origin (Alternator): China
Frequency: 50 Hz
Insulation: H Class
Protection: IP23
Power Factor: 0.8
Output Voltage: 400 V
Engine Brand: Mitsubishi
Engine Model: S16R2 PTAW2-E
Country of Origin: Japan
Prime Power: 2209 kW
Standby Power: 2430 kW
Engine Displacement: 79.9 L
No. of Cylinders: 16
Aspiration System: Turbocharged & Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 265 L/h
Fuel Consumption at 75% Load: 388 L/h
Fuel Consumption at 100% Load: 526 L/h
Revolution Per Minute: 1500 rpm
Cylinder Arrangement: V-Type
Bore x Stroke: 170 x 220 mm
Compression Ratio: 14:1
Injection Type: Direct Injection
Lubricating Oil Capacity: 290 L
Coolant Capacity: 715 L
Alternator Specifications:
Alternator Brand: Stamford
Alternator Model: S7L1D-J
Country of Origin (Alternator): China
Frequency: 50 Hz
Insulation: H Class
Protection: IP23
Power Factor: 0.8
Output Voltage: 400 V
