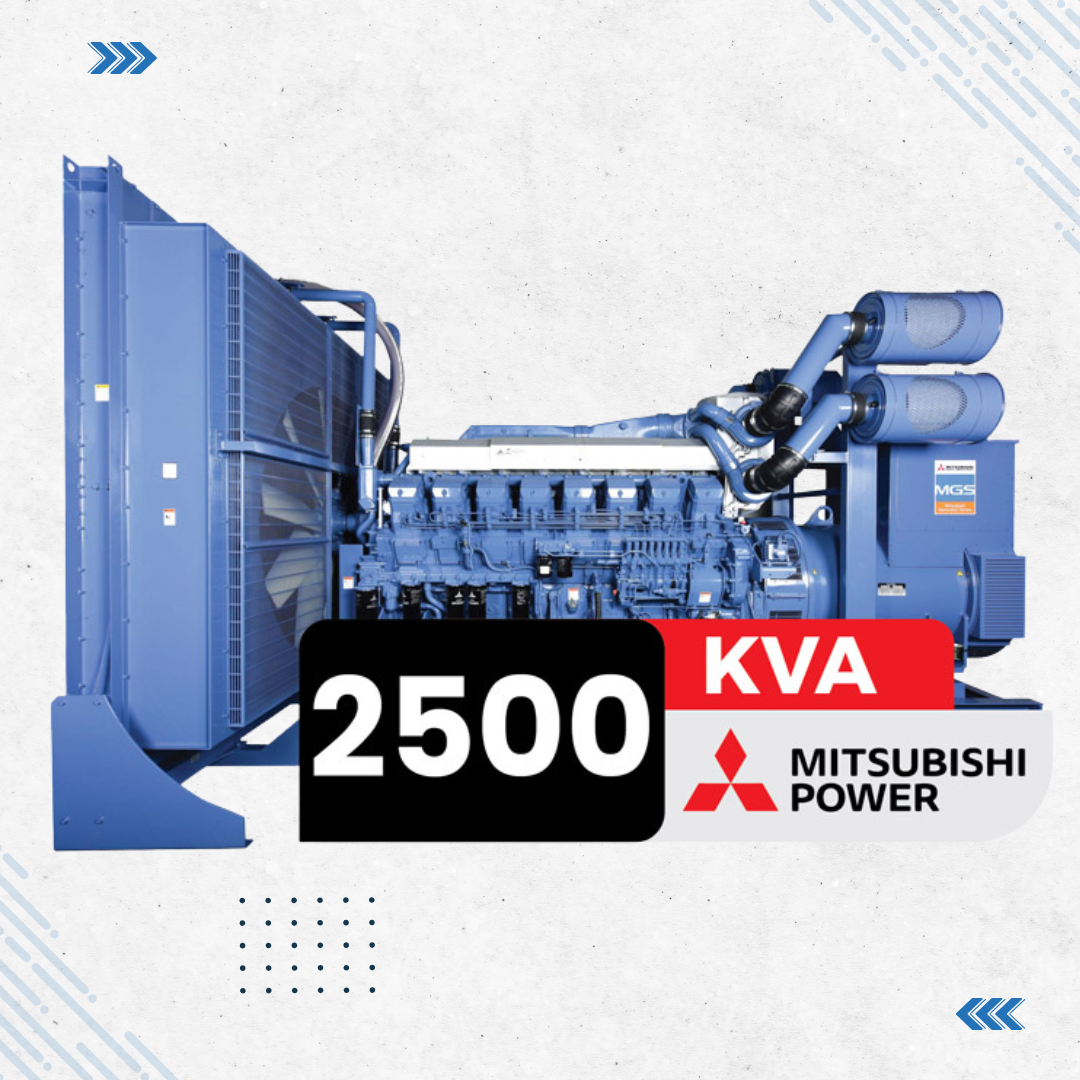

Mitsubishi S16R2 PTAW Diesel Generator – 2500 kVA
The Mitsubishi S16R2 PTAW diesel generator provides 2500 kVA of power, equipped with a 16-cylinder inline engine with a total displacement of 79.9 liters. The engine produces 1899 kW of prime power and 2106 kW of standby power at 1500 RPM. It features a turbocharged and aftercooled cooling system to optimize fuel consumption between 251 and 500 liters per hour, depending on the load. The generator is coupled with a Stamford S7L1D-J alternator producing 400V, 50Hz output, protected by IP23 and insulated to H class standards
Technical Specifications
Engine Brand: Mitsubishi
Engine Model: S16R2 PTAW
Country of Origin: Japan
Producing Country: Japan
Prime Power: 1899 kW
Standby Power: 2106 kW
Total Displacement: 79.9 L
No. of Cylinders: 16 (Inline)
Aspiration System: Natural
Cooling System: Turbocharged + Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 251 L/h
Fuel Consumption at 75% Load: 370 L/h
Fuel Consumption at 100% Load: 500 L/h
Revolution per Minute (RPM): 1500
Cylinder Bore × Stroke: 170 × 180 mm
Compression Ratio: 14:1
Fuel Injection: Direct
Lub-Oil Capacity: 290 L
Coolant Capacity: 500 L
Technical Specifications (Alternator):
Alternator Brand: Stamford
Alternator Model: S7L1D-J
Producing Country: China
Frequency: 50 Hz
Output Voltage: 400 V
Power Factor: 0.8
Insulation: H
Protection: IP23
Engine Model: S16R2 PTAW
Country of Origin: Japan
Producing Country: Japan
Prime Power: 1899 kW
Standby Power: 2106 kW
Total Displacement: 79.9 L
No. of Cylinders: 16 (Inline)
Aspiration System: Natural
Cooling System: Turbocharged + Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 251 L/h
Fuel Consumption at 75% Load: 370 L/h
Fuel Consumption at 100% Load: 500 L/h
Revolution per Minute (RPM): 1500
Cylinder Bore × Stroke: 170 × 180 mm
Compression Ratio: 14:1
Fuel Injection: Direct
Lub-Oil Capacity: 290 L
Coolant Capacity: 500 L
Technical Specifications (Alternator):
Alternator Brand: Stamford
Alternator Model: S7L1D-J
Producing Country: China
Frequency: 50 Hz
Output Voltage: 400 V
Power Factor: 0.8
Insulation: H
Protection: IP23
