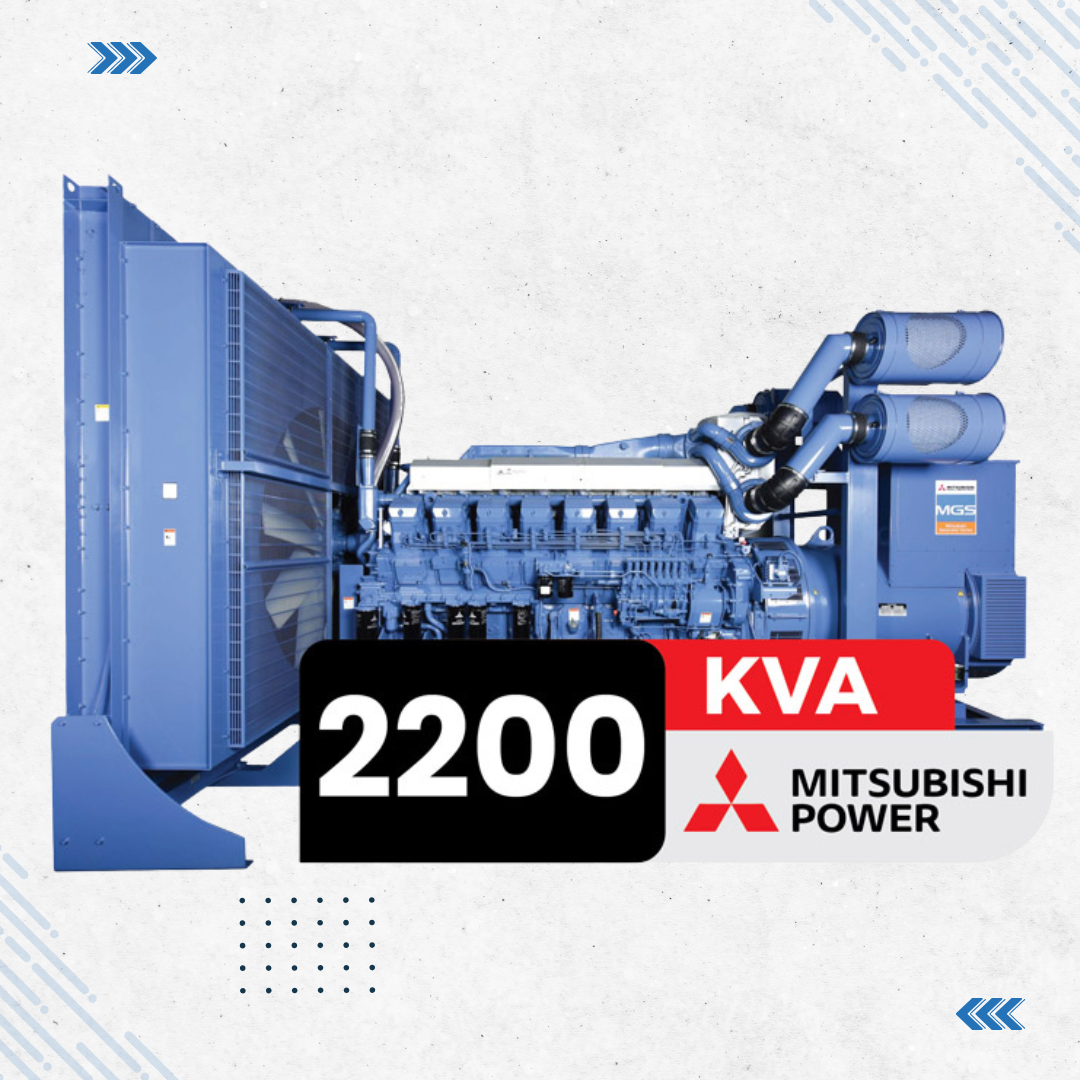

Mitsubishi S16R PTAA2 Diesel Generator – 2200 kVA
The Mitsubishi S16R PTAA2 diesel generator delivers 2200 kVA of power with a 16-cylinder inline engine, providing a total displacement of 65.37 liters. The engine offers 1728 kW of prime power and 1939 kW of standby power at 1500 RPM. It features a turbocharger and aftercooler system, optimizing fuel consumption between 215 and 402 liters per hour, depending on load. The generator is coupled with a Stamford S7L1D-G alternator that produces 400V, 50Hz output, protected by IP23 and insulated to H class standards.
Technical Specifications
Engine Brand: Mitsubishi
Engine Model: S16R PTAA2
Country of Origin: Japan
Producing Country: Japan
Prime Power: 1728 kW
Standby Power: 1939 kW
Total Displacement: 65.37 L
No. of Cylinders: 16 (Inline)
Aspiration System: Turbocharged + Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 215 L/h
Fuel Consumption at 75% Load: 308 L/h
Fuel Consumption at 100% Load: 402 L/h
Revolution per Minute (RPM): 1500
Cylinder Bore × Stroke: 170 × 180 mm
Compression Ratio: 13.5:1
Fuel Injection: Direct
Lub-Oil Capacity: 230 L
Coolant Capacity: 400 L
Technical Specifications (Alternator):
Alternator Brand: Stamford
Alternator Model: S7L1D-G
Producing Country: China
Frequency: 50 Hz
Output Voltage: 400 V
Power Factor: 0.8
Insulation: H
Protection: IP23
Engine Model: S16R PTAA2
Country of Origin: Japan
Producing Country: Japan
Prime Power: 1728 kW
Standby Power: 1939 kW
Total Displacement: 65.37 L
No. of Cylinders: 16 (Inline)
Aspiration System: Turbocharged + Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 215 L/h
Fuel Consumption at 75% Load: 308 L/h
Fuel Consumption at 100% Load: 402 L/h
Revolution per Minute (RPM): 1500
Cylinder Bore × Stroke: 170 × 180 mm
Compression Ratio: 13.5:1
Fuel Injection: Direct
Lub-Oil Capacity: 230 L
Coolant Capacity: 400 L
Technical Specifications (Alternator):
Alternator Brand: Stamford
Alternator Model: S7L1D-G
Producing Country: China
Frequency: 50 Hz
Output Voltage: 400 V
Power Factor: 0.8
Insulation: H
Protection: IP23
