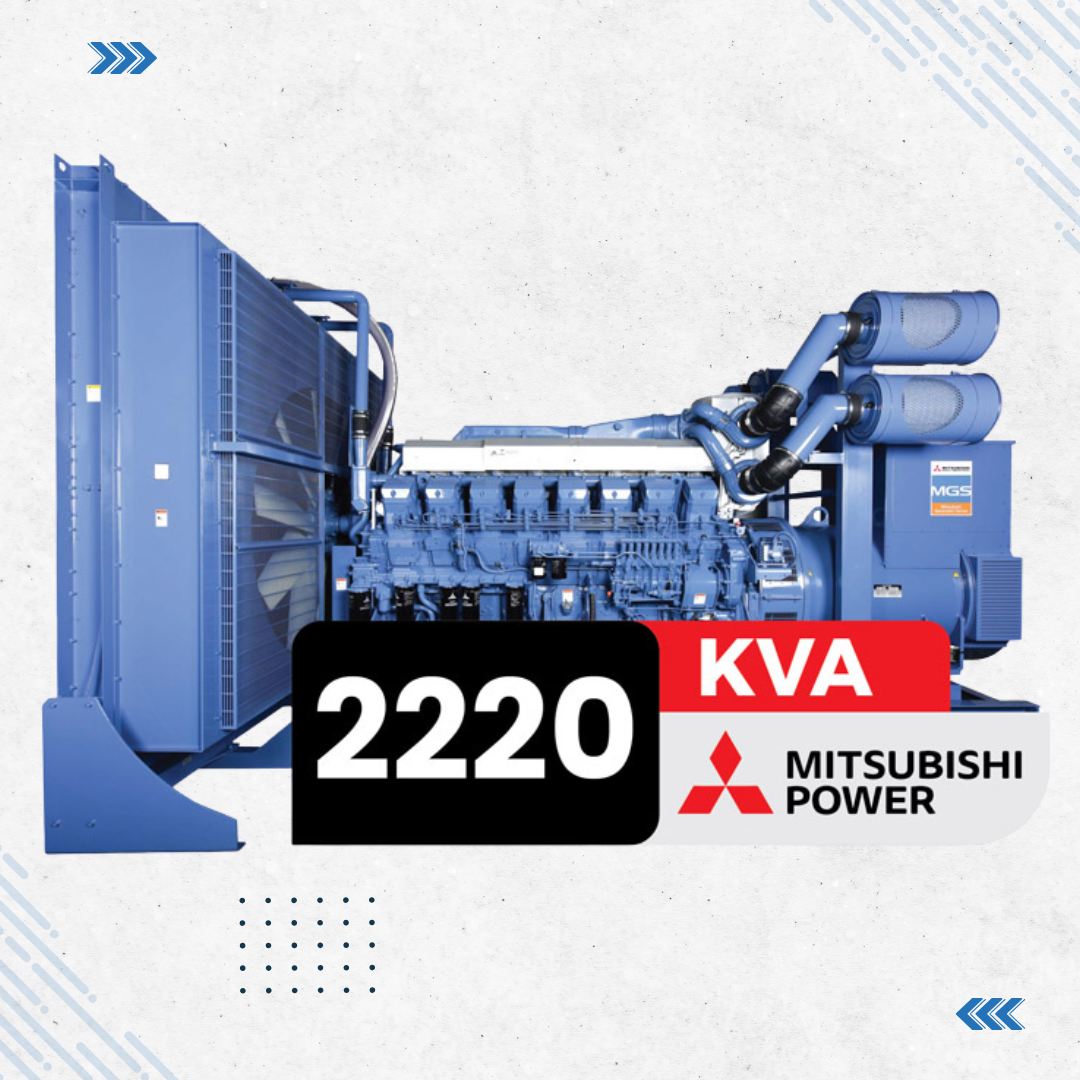

Mitsubishi S16R-F1PTAW2 Diesel Generator – 2220 kVA

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Brand: Mitsubishi ، Engine Model: S16R-F1PTAW2 ، Country of Origin: Japan ، Producing Country: Japan ، Prime Power: 2021 kW ، Standby Power: 2223 kW ، Total Displacement: 65.37 L ، No. of Cylinders: 16 (Inline) ، Aspiration System: Natural ، Cooling System: Turbocharged + Aftercooler ، Governor Type: Electronic ، Fuel Consumption at 50% Load: 215 L/h ، Fuel Consumption at 75% Load: 308 L/h ، Fuel Consumption at 100% Load: 402 L/h ، Revolution per Minute (RPM): 1500 ، Cylinder Bore × Stroke: 170 × 180 mm ، Compression Ratio: 13.5:1 ، Fuel Injection: Direct ، Lub-Oil Capacity: 230 L ، Coolant Capacity: 400 L ، Technical Specifications (Alternator): ، Alternator Brand: Stamford ، Alternator Model: S7L1D-G ، Producing Country: China ، Frequency: 50 Hz ، Output Voltage: 400 V ، Power Factor: 0.8 ، Insulation: H ، Protection: IP23

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

The Mitsubishi S16R-F1PTAW2 diesel generator delivers 2220 kVA of power with a 16-cylinder inline engine, providing a total displacement of 65.37 liters. The engine provides 2021 kW of prime power and 2223 kW of standby power at 1500 RPM. It features a turbocharged and aftercooled cooling system, optimizing fuel consumption between 215 and 402 liters per hour, depending on load. The generator is coupled with a Stamford S7L1D-G alternator that produces 400V, 50Hz output, protected by IP23 and insulated to H class standards

Technical Specifications

Engine Brand: Mitsubishi
Engine Model: S16R-F1PTAW2
Country of Origin: Japan
Producing Country: Japan
Prime Power: 2021 kW
Standby Power: 2223 kW
Total Displacement: 65.37 L
No. of Cylinders: 16 (Inline)
Aspiration System: Natural
Cooling System: Turbocharged + Aftercooler
Governor Type: Electronic
Fuel Consumption at 50% Load: 215 L/h
Fuel Consumption at 75% Load: 308 L/h
Fuel Consumption at 100% Load: 402 L/h
Revolution per Minute (RPM): 1500
Cylinder Bore × Stroke: 170 × 180 mm
Compression Ratio: 13.5:1
Fuel Injection: Direct
Lub-Oil Capacity: 230 L
Coolant Capacity: 400 L
Technical Specifications (Alternator):
Alternator Brand: Stamford
Alternator Model: S7L1D-G
Producing Country: China
Frequency: 50 Hz
Output Voltage: 400 V
Power Factor: 0.8
Insulation: H
Protection: IP23
