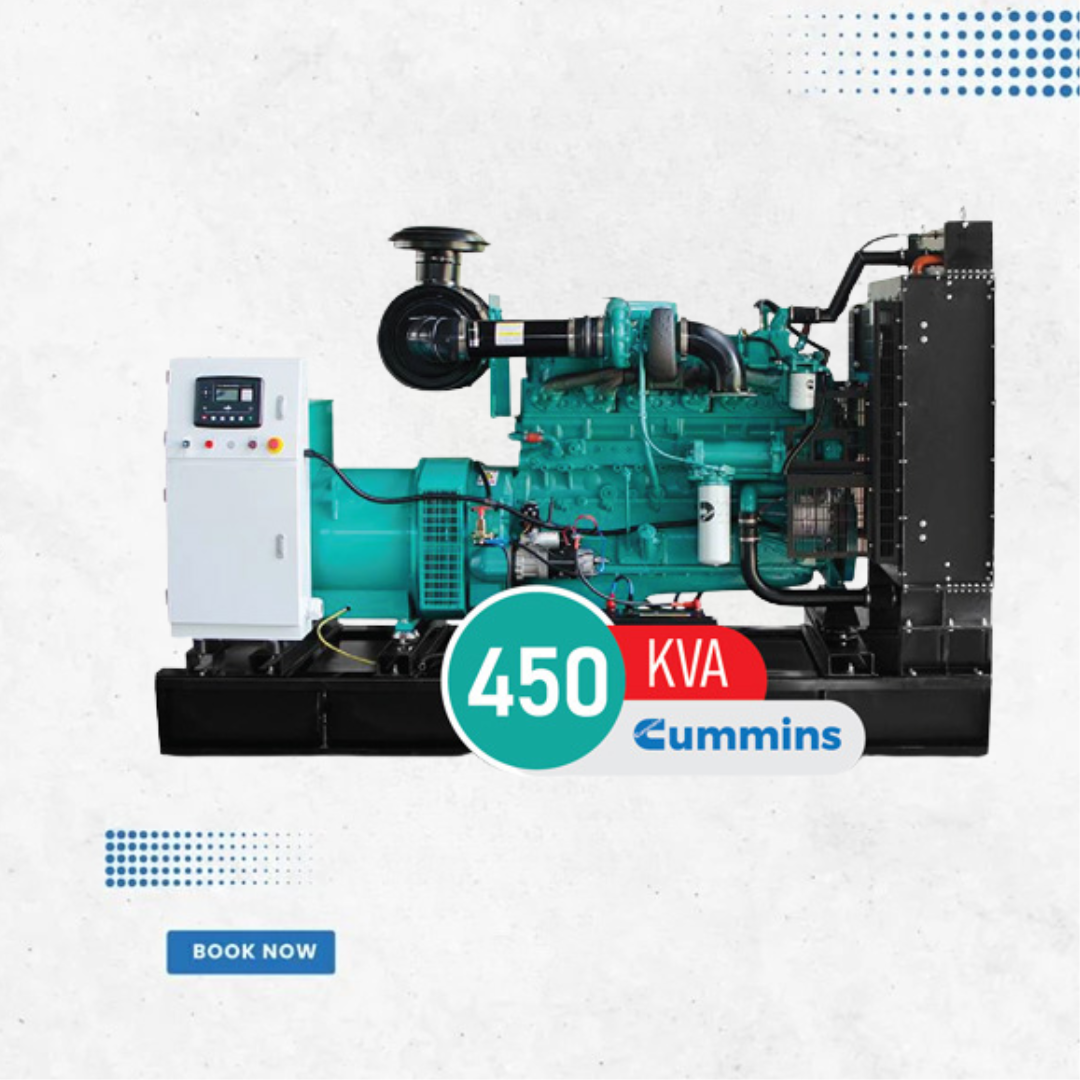

Cummins QSX15G4 Diesel Generator – 450 kVA

Engine Specifications – Cummins QSX15-G4 ، Brand: Cummins ، Model: QSX15-G4 ، Origin: USA ، Manufacturing Countries: USA, UK, India ، Prime Power: 466 hp ، Standby Power: 516 hp ، Displacement: 15 L ، Cylinders: 6 ، Configuration: Inline ، Aspiration: Turbocharged ، Cooling System: Water-cooled ، Governor: Electronic ، Fuel Consumption: ، 50% load: 45.7 L/h ، 75% load: 67 L/h ، 100% load: 85.7 L/h ، Rated Speed: 1500 rpm ، Bore × Stroke: 137 × 169 mm ، Compression Ratio: 17:1 ، Injection System: Direct Injection ، Electrical System: 24V DC ، Oil Capacity: 91 L ، Fuel Tank Capacity: 380 L ، Coolant Capacity: 42 L ، Exhaust Temperature: 488°C ، Exhaust Gas Flow: 87.78 m³/h ، Cooling Air Flow: 708 m³/min ، Dry Weight: 1658 kg ، Alternator Specifications – Stamford HCI 434F/444F ، Brand: Stamford ، Model: HCI 434F/444F ، Origin: UK ، Prime Power: 400 kVA ، Standby Power: 450 kVA ، Frequency: 50 Hz ، Insulation Class: H ، Protection: IP23 ، Efficiency: 93.5% ، Overload Capacity: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: Single-bearing ، Output Voltage: 400/230 V ، Speed: 2250 rpm ، Coupling Specifications ، Prime Power: 409 kVA ، Standby Power: 450 kVA ، Prime kW: 327 kW ، Standby kW: 360 kW
