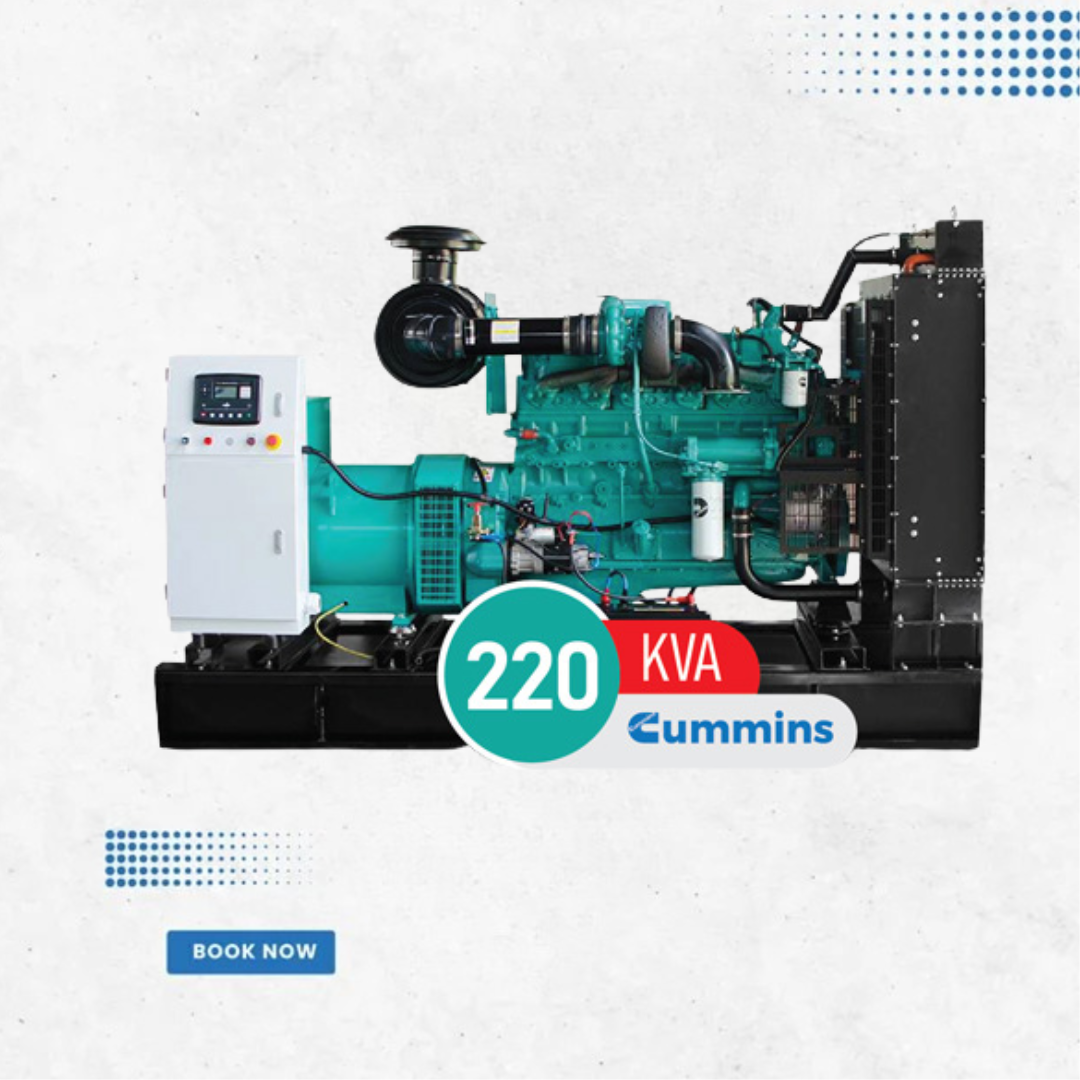

Cummins QSB7G5 Diesel Generator – 220 kVA

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine: ، Brand: Cummins ، Model: QSB7G5 ، Country of Origin: USA ، Producing Country: USA, UK, India ، Engine Power: 160 kW / 215 HP ، Max Engine Power: 176 kW / 236 HP ، Displacement: 6.69 L ، Cylinders: 6 ، Aspiration: Turbocharged ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption 50%: 26 L/h ، Fuel Consumption 75%: 36 L/h ، Fuel Consumption 100%: 45 L/h ، RPM: 1500 ، Cylinder Arrangement: Inline ، Bore x Stroke: 107x124 mm ، Injection: Direct ، Electrical System: 12 V DC ، Oil Capacity: 18.9 L ، Coolant Capacity: 26 L ، Dry Weight: 585 kg ، Alternator: ، Brand: Stamford ، Model: UCI274H ، Producing Country: UK ، Prime Power: 205 kVA ، Standby Power: 227 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 93% ، Overload: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 230/400 V ، RPM: 2250

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

The Cummins QSB7G5 220 kVA diesel generator features a 6-cylinder inline engine with a 6.69 L displacement. It uses direct fuel injection, turbocharged aspiration, and a water-cooled system to maintain optimal operating temperature.The electronic governor stabilizes engine speed at 1500 rpm. The generator provides 200 kVA prime power and 220 kVA standby power. Electrical system operates at 12 V DC. Capacities include 18.9 L oil, 26 L coolant, and dry weight is 585 kg.Fuel consumption varies with load: 50% – 26 L/h, 75% – 36 L/h, 100% – 45 L/h. The generator is equipped with a Stamford UCI274H alternator, 4 poles, 1 bearing, 93% efficiency, 400/230 V output, 0.8 power factor, IP23 protection, 110% overload capacity, 50 Hz frequency, and 2250 rpm speed. Suitable for industrial and emergency applications.

Technical Specifications

Engine:
Brand: Cummins
Model: QSB7G5
Country of Origin: USA
Producing Country: USA, UK, India
Engine Power: 160 kW / 215 HP
Max Engine Power: 176 kW / 236 HP
Displacement: 6.69 L
Cylinders: 6
Aspiration: Turbocharged
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption 50%: 26 L/h
Fuel Consumption 75%: 36 L/h
Fuel Consumption 100%: 45 L/h
RPM: 1500
Cylinder Arrangement: Inline
Bore x Stroke: 107x124 mm
Injection: Direct
Electrical System: 12 V DC
Oil Capacity: 18.9 L
Coolant Capacity: 26 L
Dry Weight: 585 kg
Alternator:
Brand: Stamford
Model: UCI274H
Producing Country: UK
Prime Power: 205 kVA
Standby Power: 227 kVA
Frequency: 50 Hz
Insulation: H
Protection: IP23
Efficiency: 93%
Overload: 110%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 230/400 V
RPM: 2250

You too can leave a comment about this product
