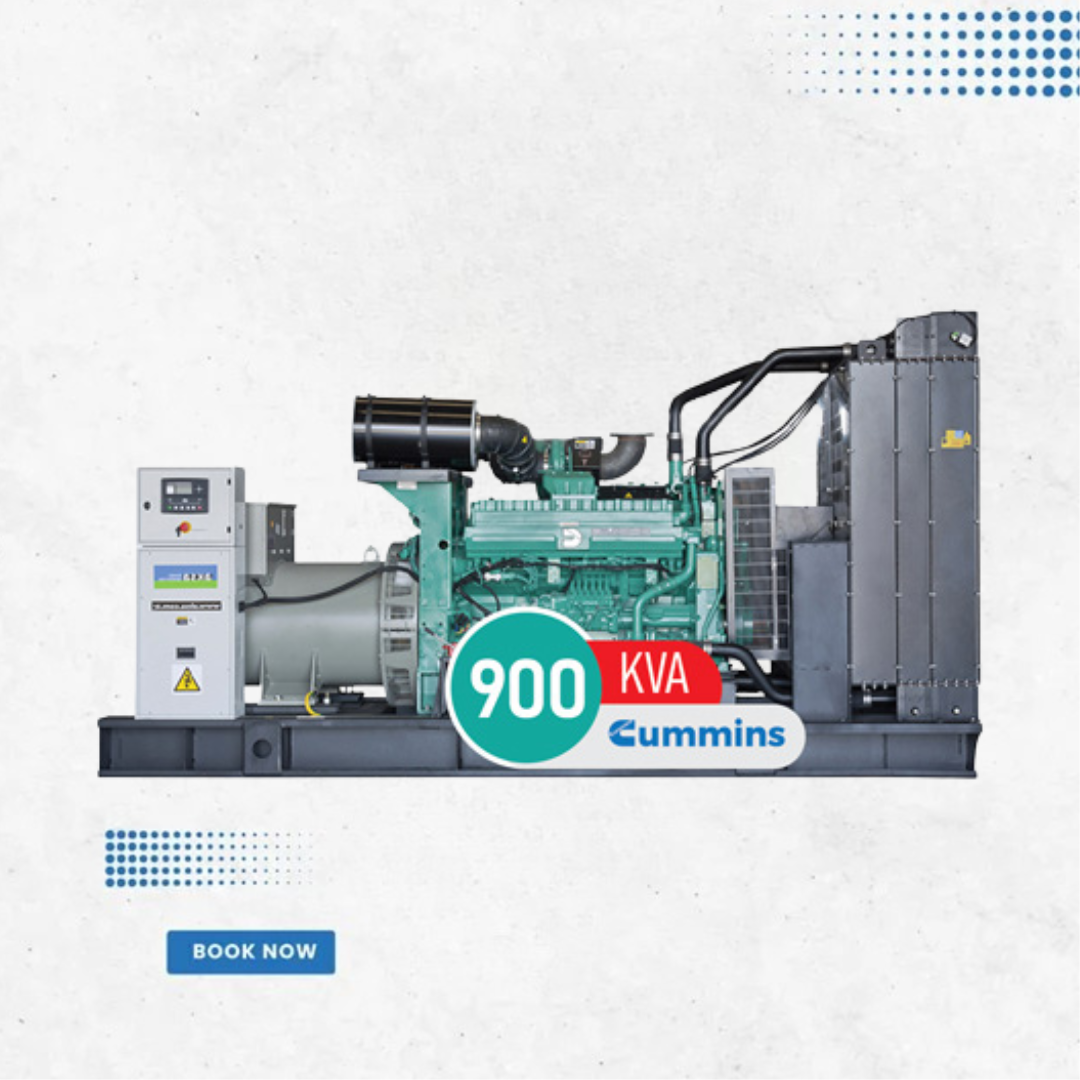

Cummins Diesel Generator 900 kVA Model QSK23-G3

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Specifications ، Engine Brand: Cummins ، Engine Model: QSK23-G3 ، Engine Origin: USA ، Manufacturing Countries: USA, UK, India ، Engine Power: 915 hp ، Emergency Power: 991 hp ، Engine Capacity: 23.1 L ، Cylinders: 6 ، Cylinder Arrangement: L ، Aspiration: Turbocharged ، Cooling System: Water-cooled ، Governor Type: Electronic ، Engine Speed: 1500 rpm ، Bore × Stroke: 170×170 mm ، Injection System: Direct ، Electrical System: 24 V.DC ، Oil Tank Capacity: 103 L ، Cooling System Capacity: 57 L ، Dry Weight: 3185 kg ، Alternator Specifications ، Brand: Stamford ، Model: HCI634H ، Country of Manufacture: UK ، Rated Power: 910 kVA ، Standby Power: 1000 kVA ، Frequency: 50 Hz ، Insulation Class: H ، Protection: IP23 ، Overload: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 400/230 V ، Rated Speed: 2250 rpm ، Generator Coupling Specifications ، Prime Power (kVA): 810 kVA ، Standby Power (kVA): 900 kVA ، Prime Power (kW): 648 kW ، Standby Power (kW): 720 kW

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

The Cummins QSK23-G3 diesel generator with 900 kVA power features a 6-cylinder L-shaped engine with 23.1-liter capacity.This turbocharged engine, with water-cooled system and electronic governor, produces continuous power of 915 hp and emergency power of 991 hp. The engine runs at 1500 rpm with 170×170 mm bore × stroke and direct fuel injection for high efficiency and complete combustion.Electrical system is 24 V DC, with 103 L oil capacity and 57 L cooling system. Max exhaust temperature is 543 °C with exhaust flow of 147.78 m³/h. Cooling air flow is 810 m³/min and dry weight is 3185 kg

Technical Specifications

Engine Specifications
Engine Brand: Cummins
Engine Model: QSK23-G3
Engine Origin: USA
Manufacturing Countries: USA, UK, India
Engine Power: 915 hp
Emergency Power: 991 hp
Engine Capacity: 23.1 L
Cylinders: 6
Cylinder Arrangement: L
Aspiration: Turbocharged
Cooling System: Water-cooled
Governor Type: Electronic
Engine Speed: 1500 rpm
Bore × Stroke: 170×170 mm
Injection System: Direct
Electrical System: 24 V.DC
Oil Tank Capacity: 103 L
Cooling System Capacity: 57 L
Dry Weight: 3185 kg
Alternator Specifications
Brand: Stamford
Model: HCI634H
Country of Manufacture: UK
Rated Power: 910 kVA
Standby Power: 1000 kVA
Frequency: 50 Hz
Insulation Class: H
Protection: IP23
Overload: 110%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 400/230 V
Rated Speed: 2250 rpm
Generator Coupling Specifications
Prime Power (kVA): 810 kVA
Standby Power (kVA): 900 kVA
Prime Power (kW): 648 kW
Standby Power (kW): 720 kW
