Cummins Diesel Generator 825 kVA Model VTA28G6

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine Specifications ، Engine Brand: Cummins ، Engine Model: VTA28G6 ، Engine Origin: USA ، Manufacturing Countries: USA ، Engine Power: 660 kW / 884 hp ، Engine Capacity: 28 L ، Cylinders: 12 ، Cylinder Arrangement: Inline ، Aspiration: Turbocharged ، Cooling System: Water-cooled ، Governor Type: Electronic ، Engine Speed: 1500 rpm ، Bore × Stroke: 142×150 mm ، Injection System: Direct ، Electrical System: 24 V.DC ، Oil Tank Capacity: 83 L ، Cooling System Capacity: 182 L ، Dry Weight: 2900 kg ، Alternator Specifications ، Brand: Stamford ، Model: S4L1D-H ، Country of Manufacture: UK ، Frequency: 50 Hz ، Insulation Class: H ، Protection System: IP23 ، Overload: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 230/400 V ، Rated Speed: 2250 rpm

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

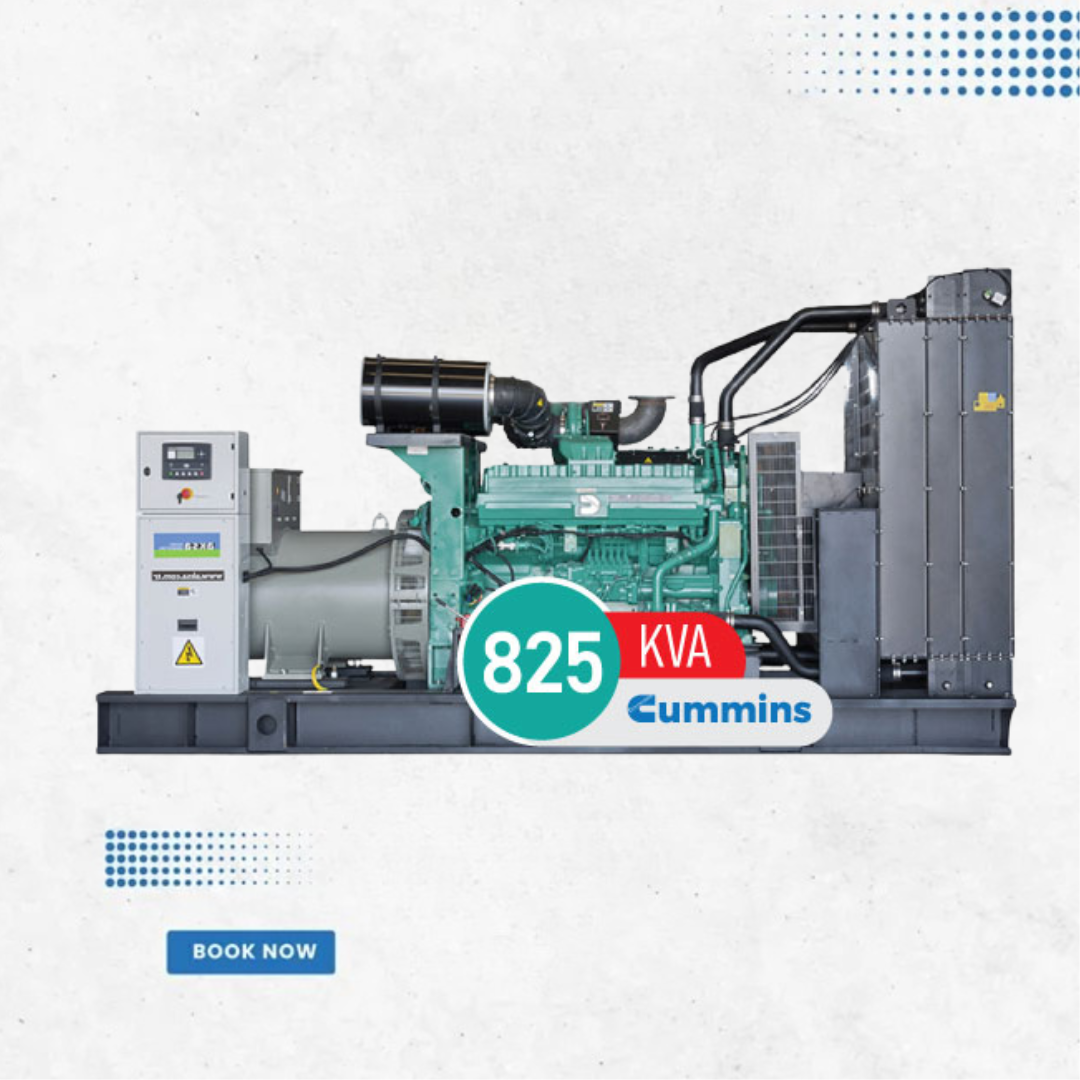

The Cummins VTA28G6 diesel generator with 825 kVA power features a 12-cylinder inline engine with a 28-liter capacity, capable of delivering up to 660 kW (825 kVA).The engine is equipped with a turbocharged air intake and direct injection, running at 1500 rpm for stable performance. Engine speed is controlled electronically by the governor.With a dry weight of 2900 kg and durable construction using genuine American parts, it ensures long service life. The 83-liter oil tank and 182-liter cooling system enable continuous operation without interruption

Technical Specifications

Engine Specifications
Engine Brand: Cummins
Engine Model: VTA28G6
Engine Origin: USA
Manufacturing Countries: USA
Engine Power: 660 kW / 884 hp
Engine Capacity: 28 L
Cylinders: 12
Cylinder Arrangement: Inline
Aspiration: Turbocharged
Cooling System: Water-cooled
Governor Type: Electronic
Engine Speed: 1500 rpm
Bore × Stroke: 142×150 mm
Injection System: Direct
Electrical System: 24 V.DC
Oil Tank Capacity: 83 L
Cooling System Capacity: 182 L
Dry Weight: 2900 kg
Alternator Specifications
Brand: Stamford
Model: S4L1D-H
Country of Manufacture: UK
Frequency: 50 Hz
Insulation Class: H
Protection System: IP23
Overload: 110%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 230/400 V
Rated Speed: 2250 rpm

You too can leave a comment about this product
