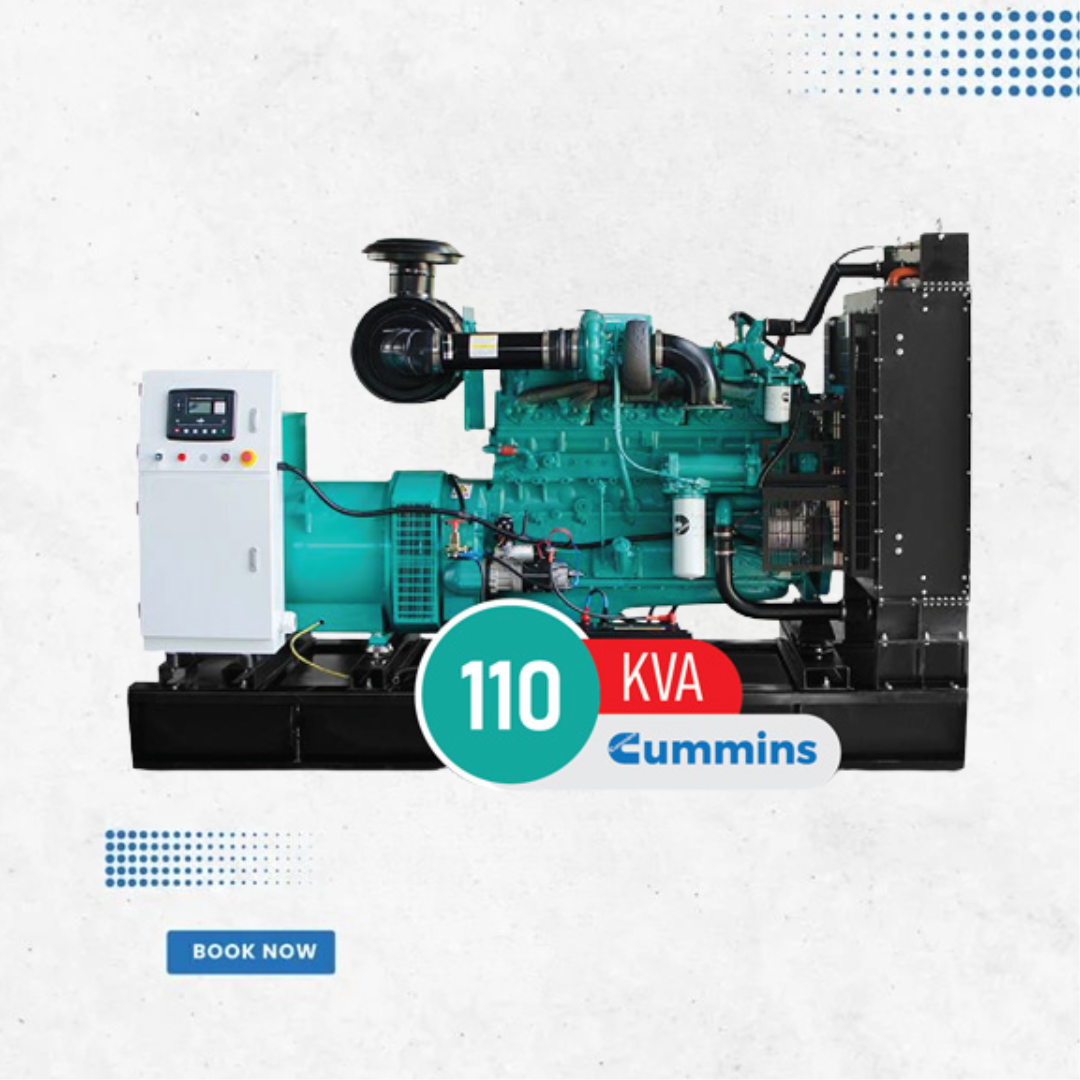

Cummins 6BTA5.9G5 Diesel Generator – 110 kVA

Engine: ، Brand: Cummins ، Model: 6BTA5.9G5 ، Country of Origin: USA ، Producing Countries: USA, UK, India ، Prime Power: 121 hp ، Standby Power: 131 hp ، Total Displacement: 5.9 L ، Number of Cylinders: 6 ، Aspiration System: Turbocharged ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption 50% Load: 12 L/h ، Fuel Consumption 75% Load: 18 L/h ، Fuel Consumption 100% Load: 25 L/h ، Max Engine Speed: 1500 rpm ، Cylinder Arrangement: Inline ، Bore x Stroke: 102 x 120 mm ، Compression Ratio: 17.6:1 ، Injection: Direct ، Electrical System: 12 V DC ، Lubricant Capacity: 16.4 L ، Fuel Tank Capacity: 125 L ، Engine Coolant Capacity: 19.75 L ، Max Exhaust Temperature: 533 °C ، Max Exhaust Gas Flow: 21.42 m³/h ، Cooling Air Flow: 215.4 m³/min ، Dry Weight: 402 kg ، Alternator: ، Brand: Stamford ، Model: UCI274C ، Producing Country: UK ، Prime Power: 100 kVA ، Standby Power: 110 kVA ، Frequency: 50 Hz ، Insulation Class: H ، Protection: IP23 ، Efficiency: 89.8% ، Overload Capacity: 110% ، Rated Power Factor: 0.8 ، Number of Poles: 4 ، Number of Bearings: 1 ، Output Voltage: 400/230 V ، Max RPM: 2250
