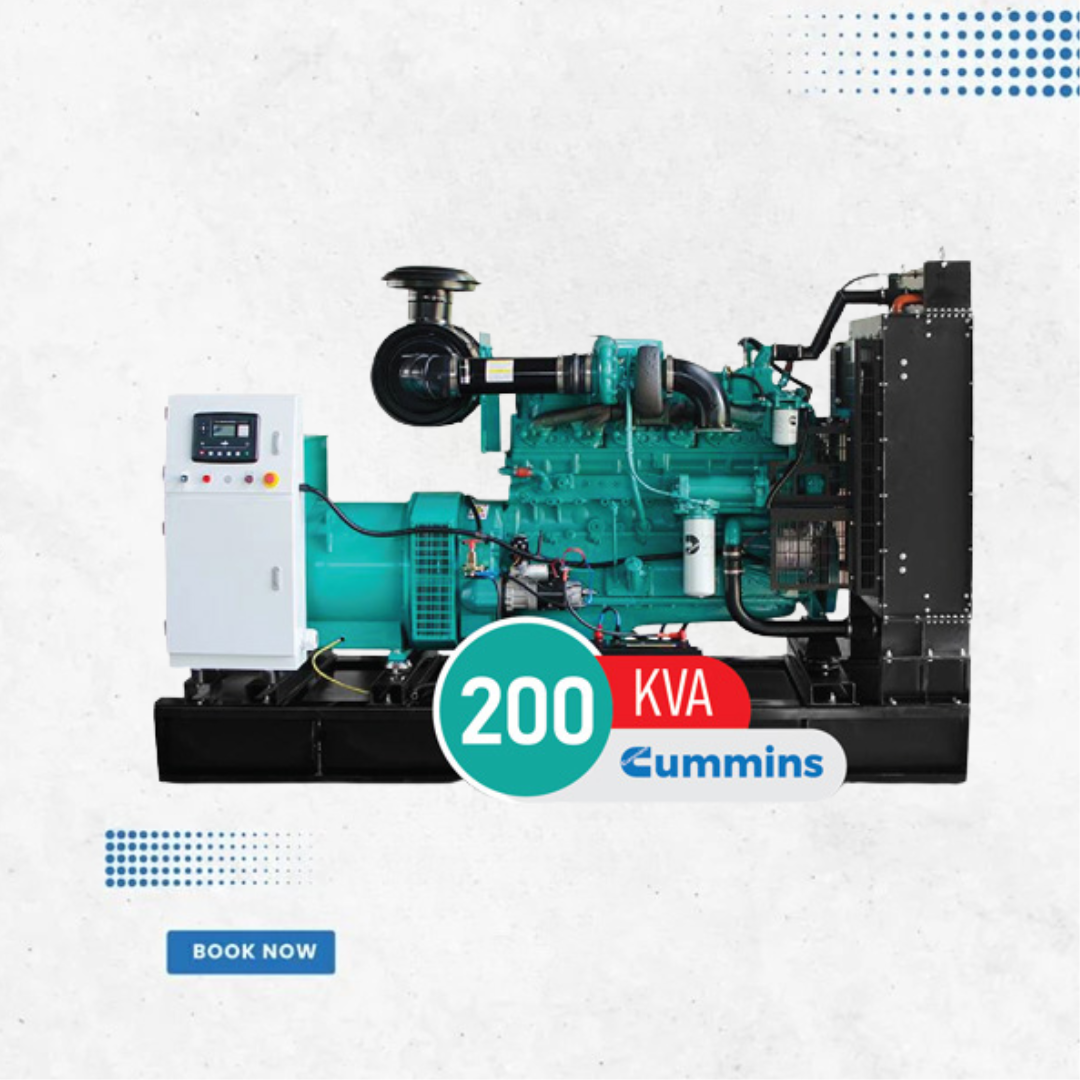

Cummins 200 kVA Diesel Generator Engine Specifications – Model 6CTA8.3-G2

از {{model.count}} نظر

comparison

Specifications

Technical Specifications

Engine: ، Brand: Cummins ، Model: 6CTA8.3-G2 ، Country of Origin: USA ، Producing Country: USA, UK, India ، Prime Power: 211 HP ، Standby Power: 234 HP ، Displacement: 8.3 L ، Cylinders: 6 ، Aspiration System: Turbocharged with Aftercooler ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption 50%: 20 L/h ، Fuel Consumption 75%: 30 L/h ، Fuel Consumption 100%: 40 L/h ، RPM: 1500 ، Cylinder Arrangement: Inline ، Bore x Stroke: 114x135 mm ، Compression Ratio: 17.3:1 ، Injection: Direct ، Electrical System: 24 V DC ، Oil Capacity: 23.8 L ، Coolant Capacity: 12.3 L ، Dry Weight: 769 kg ، Torque: 1040 Nm ، Alternator: ، Brand: Stamford ، Model: UCI274G ، Producing Country: UK ، Prime Power: 186 kVA ، Standby Power: 206 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 92% ، Overload: 110% ، Power Factor: 0.8 ، Poles: 4 ، Bearings: 1 ، Output Voltage: 400/230 V ، RPM: 2250 ، Generator Set: ، Prime Power: 180 kVA / 144 kW ، Standby Power: 200 kVA / 160 kW

comparison

{{value}}

Product inquiry

Available in stock

Fast shipping

Product authenticity guarantee

Cummins, an American company founded in the USA, manufactures its products in several countries to reduce the final cost. By employing professional experts, Cummins aims to increase product quality while keeping diesel generator prices competitive.The pistons and cylinders are well-designed to maintain performance under different environmental conditions. The Cummins 200 kVA diesel generator provides 180 kVA prime power and 200 kVA standby power. It is equipped with an 8.3-liter engine and a water-cooled system to regulate engine temperature.For purchase guidance and power calculation, you can consult the company experts. Authorized distributors provide European and American products with a full price list

Technical Specifications

Engine:
Brand: Cummins
Model: 6CTA8.3-G2
Country of Origin: USA
Producing Country: USA, UK, India
Prime Power: 211 HP
Standby Power: 234 HP
Displacement: 8.3 L
Cylinders: 6
Aspiration System: Turbocharged with Aftercooler
Cooling System: Water-cooled
Governor Type: Electronic
Fuel Consumption 50%: 20 L/h
Fuel Consumption 75%: 30 L/h
Fuel Consumption 100%: 40 L/h
RPM: 1500
Cylinder Arrangement: Inline
Bore x Stroke: 114x135 mm
Compression Ratio: 17.3:1
Injection: Direct
Electrical System: 24 V DC
Oil Capacity: 23.8 L
Coolant Capacity: 12.3 L
Dry Weight: 769 kg
Torque: 1040 Nm
Alternator:
Brand: Stamford
Model: UCI274G
Producing Country: UK
Prime Power: 186 kVA
Standby Power: 206 kVA
Frequency: 50 Hz
Insulation: H
Protection: IP23
Efficiency: 92%
Overload: 110%
Power Factor: 0.8
Poles: 4
Bearings: 1
Output Voltage: 400/230 V
RPM: 2250
Generator Set:
Prime Power: 180 kVA / 144 kW
Standby Power: 200 kVA / 160 kW
