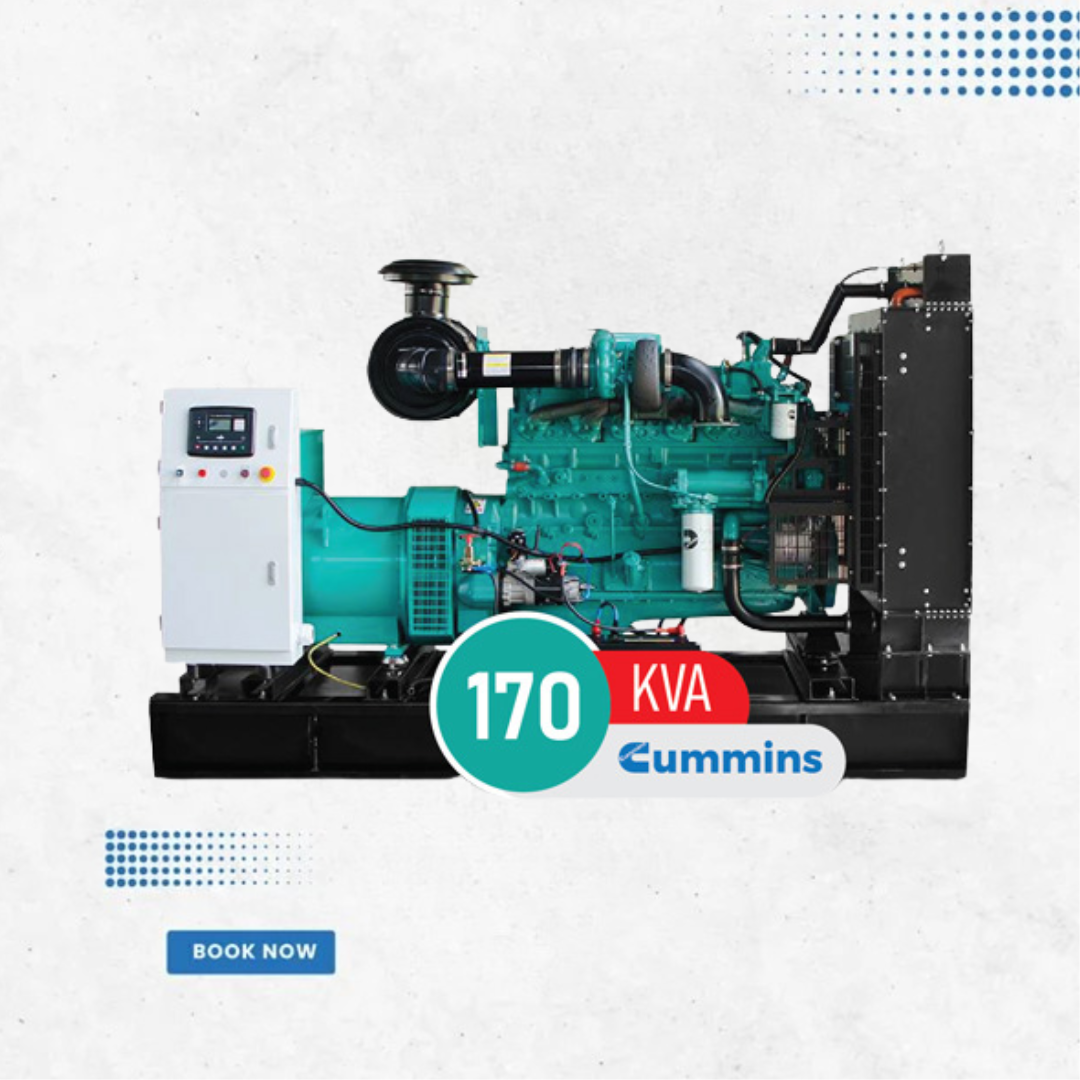

Cummins 170 kVA Diesel Generator Engine Specifications – Model 6BTAA5.9G7

Engine ، Engine Brand: Cummins ، Engine Model: 6BTAA5.9-G7 ، Country of Origin: USA ، Producing Country: USA, UK, India ، Prime Power: 195 HP ، Standby Power: 215 HP ، Total Displacement: 5.9 L ، Number of Cylinders: 6 ، Aspiration System: Turbocharged ، Cooling System: Water-cooled ، Governor Type: Electronic ، Fuel Consumption 50%: 19 L/h ، Fuel Consumption 75%: 29 L/h ، Fuel Consumption 100%: 37 L/h ، Revolution per Minute: 1500 rpm ، Cylinder Arrangement: Inline ، Bore x Stroke: 102x120 mm ، Compression Ratio: 16.5:1 ، Injection: Direct ، Electrical System: 12 V DC ، Lub-Oil Capacity: 16.4 L ، Fuel Tank Capacity: 125 L ، Engine Coolant Capacity: 21.4 L ، Maximum Exhaust Temperature: 533 °C ، Maximum Exhaust Gas Flow: 12.42 m³/h ، Cooling Air Flow: 222 m³/min ، Dry Weight: 718 kg ، Alternator ، Alternator Brand: Stamford ، Alternator Model: UCI274F ، Producing Country: UK ، Prime Power: 152 kVA ، Standby Power: 167 kVA ، Frequency: 50 Hz ، Insulation: H ، Protection: IP23 ، Efficiency: 92% ، Overloading: 110% ، Rated Power Factor: 0.8 ، Number of Poles: 4 ، Number of Bearings: 1 ، Output Voltage: 400/230 V ، RPM: 2250 ، Generator Set ، Prime Power: 155 kVA / 124 kW ، Standby Power: 170 kVA / 136 kW
